Hyundai Ioniq (AE): Windshield Wiper/Washer / Rain Sensor. Schematic diagrams

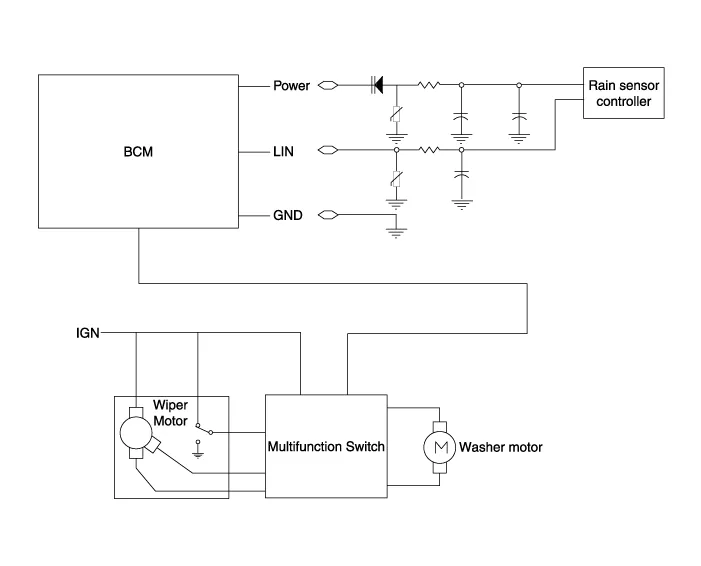

| Circuit Diagram |
Components and Components Location
DescriptionIntegrated Rain SensorIntegrated rain sensor (A) controls three systems: front wiper, auto-light, and central air conditioner.1.Wiper Control SystemWhen "AUTO" switch signal is received from the multi-function switch on the right, the integrated rain sensor detects the amount of rainfall.
