Hyundai Ioniq (AE): Floor Console / Rear Console Cover. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Floor Console / Rear Console Cover. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
2.

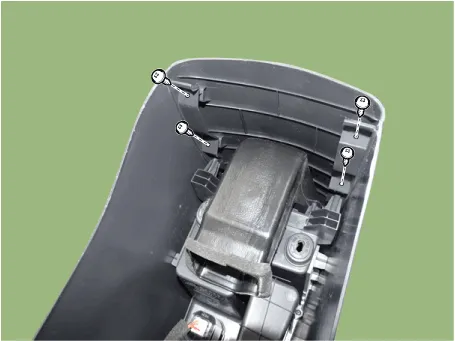

Loosen the rear console mounting screws.

3.

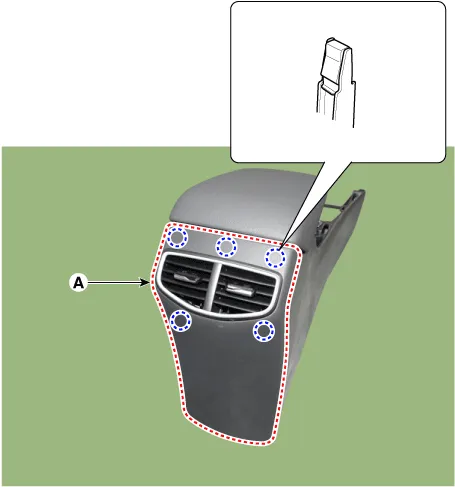

Using a screwdriver or remover, remove the rear console cover (A).

4.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
•
Replace any damaged clips (or pin-type retainers).
