Replacement
1.
Remove the rear door window glass.
(Refer to Rear Door - "Rear Door Window Glass")
2.
Remove the rear door outside handle.
(Refer to Rear Door - "Rear Door Outside Handle")
3.

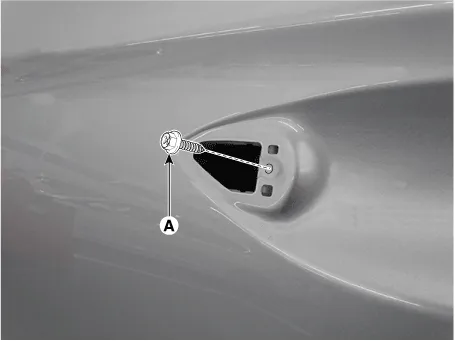

Loosen the rear door outside handle base mounting bolt (A).
Tightening torque :
2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb-ft)

4.

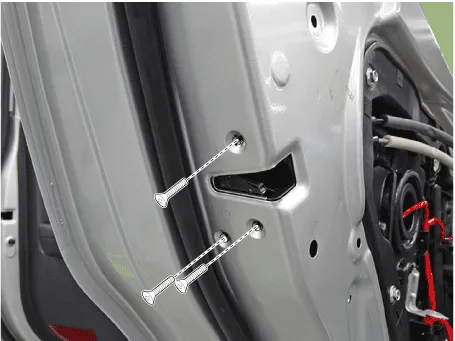

Loosen the rear door latch mounting screws.
Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.0 - 8.0 lb-ft)

5.

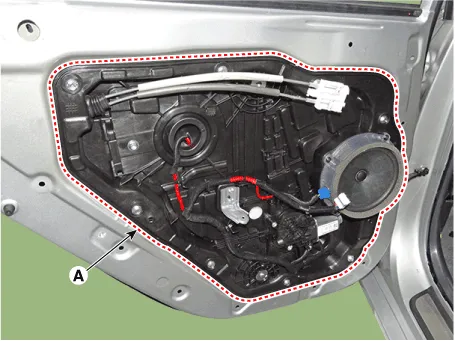

After loosening the mounting bolts, remove the rear door module (A).
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

6.
Remove the rear door latch assembly.
(Refer to Front Door - "rear Door Latch")
7.
Reomove the rear speaker .
(Refer to Body Electrical System - "Speakers")
8.
Remove the rear power window motor.
(Refer to Body Electrical System - "Power Window Motor")
9.
To install, reverse the removal procedure.

•
Make sure connectors are connected properly and each rod is connected securely.
•
Make sure the door locks / unlocks and opens / closes properly.

    Component Location 1. Rear door module

    Component Location 1. Rear door outside handle
