Hyundai Ioniq (AE): Rear Door / Rear Door Module. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Module. Components and components location

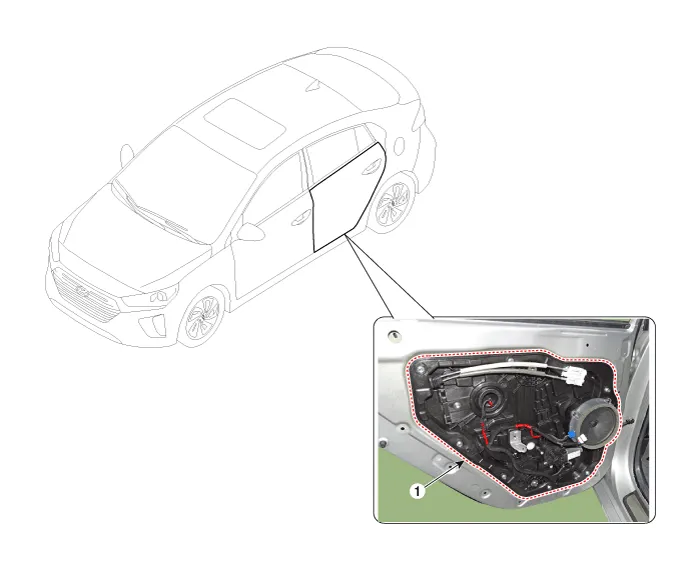

Component Location

1. Rear door module


    Replacement1.Remove the rear door trim.(Refer to Rear Door - "Rear Door Trim")2.Remove the rear door belt inside weatherstrip (A).3.Pull down rear door window glass by pressing the power window glass switch.

    Replacement1.Remove the rear door window glass.(Refer to Rear Door - "Rear Door Window Glass")2.Remove the rear door outside handle.(Refer to Rear Door - "Rear Door Outside Handle")3.
