Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear wheel house trim
(Refer to Interior Trim - "Rear Wheel House Trim")
2.

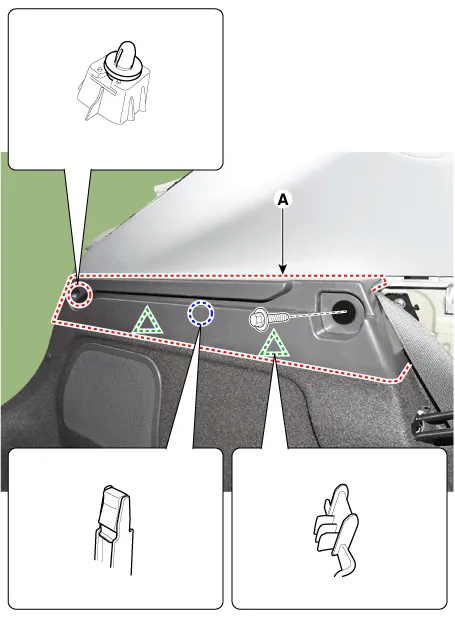

Loosen the mounting bolts, remove the shift side trim covering (A).

3.

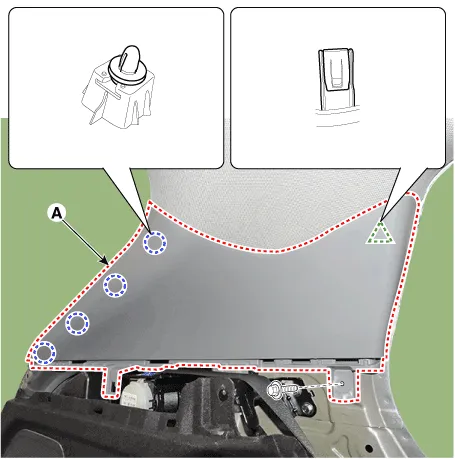

Loosen the mounting bolts, remove the rear pillar trim (A).

4.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).
