Hyundai Ioniq (AE): Body Side Molding / Rear Spoiler. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Body Side Molding / Rear Spoiler. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.
Remove the tailgate side trim.
(Refer to Tailgate - "Tailgate Trim")
2.

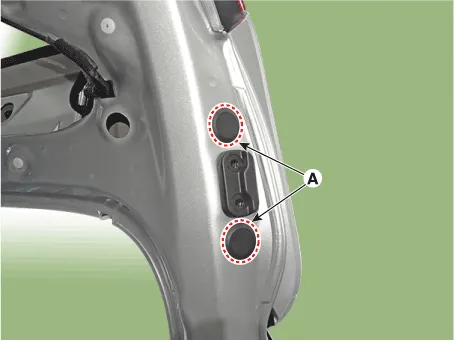

Remove the rear spoiler plug hole (A).

3.

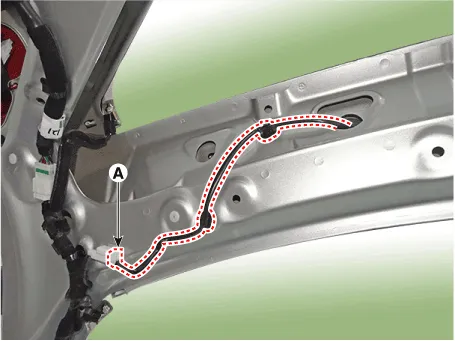

Disconnect the rear spoiler connector (A).

4.

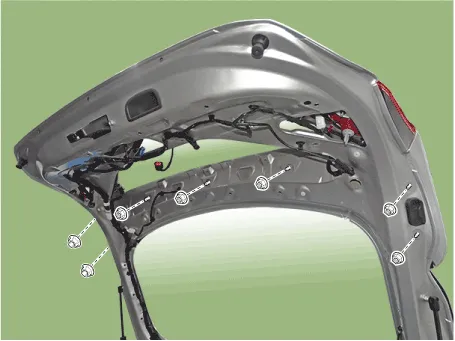

Loosen the mounting bolt and remove the rear spoiler (A).
Tightening torque :
5.9 - 6.4 N.m (0.6 - 0.65 kgf.m, 4.3 - 4.7 lb-ft)

5.
To installintall, reverse the removal procedure.

•
Replace any damaged clips.
•
Make sure the connector is connected properly.

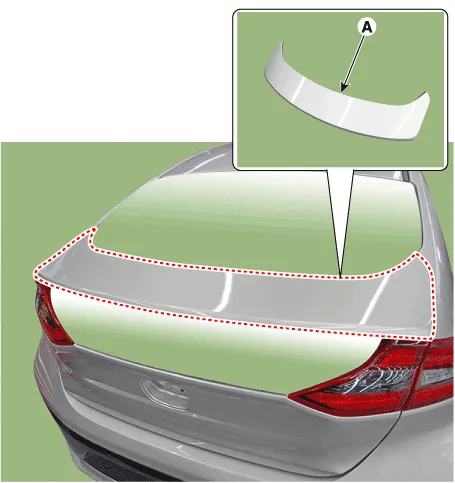

    Components Location1. Rear spoiler
