Hyundai Ioniq (AE): Air Conditioning System / Refrigerant Line. Components and components location

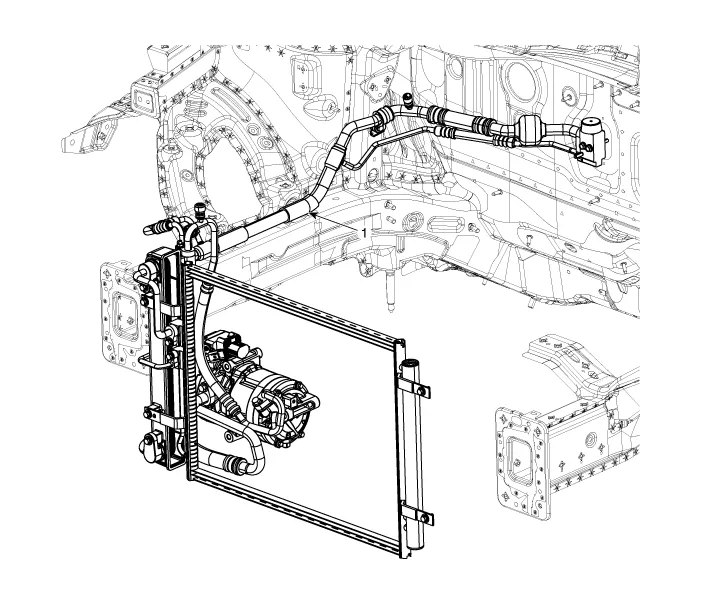

| Components Location |
| 1. Refrigerant Line Assembly |
Oil Specification1.The HFC-134a system requires synthetic (POE) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed.
Replacement1.If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
