Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
1.

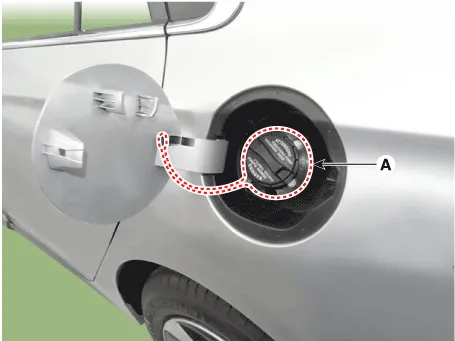

Open the fuel filler door (A).

2.

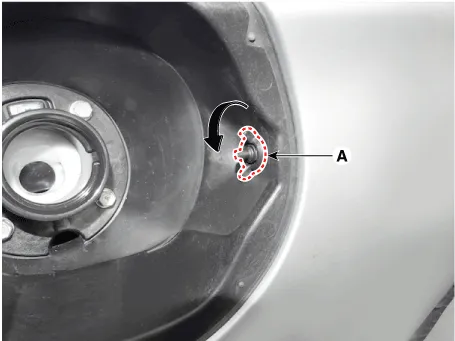

Remove the fuel filler door pushpin (A) by turning it in a counterclockwise direction.

3.

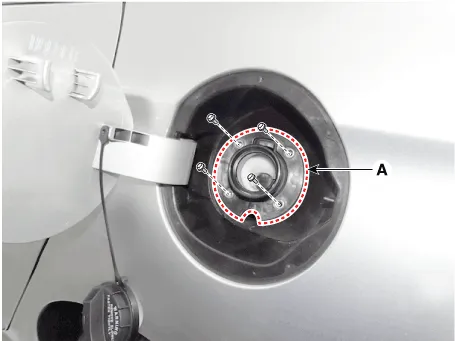

After loosening the mounting clips, remove the fuel filler door housing (A).

•
When removing, pull out the packing part from inside not to damage the fuel filler door packing part.

4.

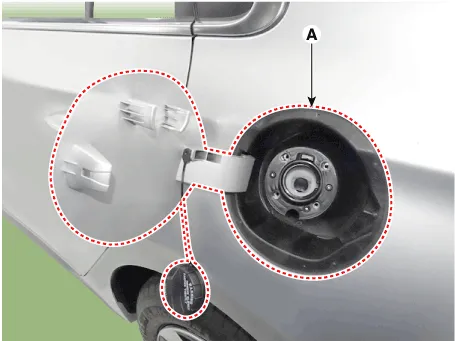

Using a screwdriver or remover, remove the fuel filler door (A).

5.
To install, reverse the removal procedure.

•
Make sure the fuel filler door locks / unlocks and opens / closes properly.

    Component Location 1. Fuel filler door
