| Removal |
|
| 1. | Shut off the high voltage circuit. (Refer to Hybrid Control System - "High Voltage Shutoff Procedure") |
| 2. | Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "Air Cleaner") |

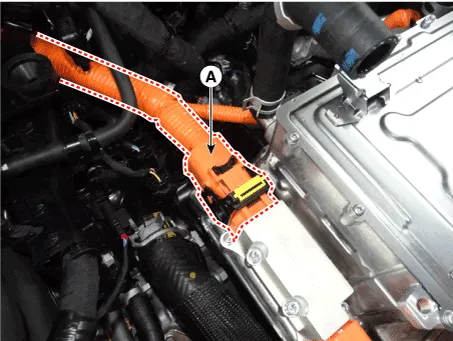

| 3. | Disconnect the power cable (A) from the HPCU.
|

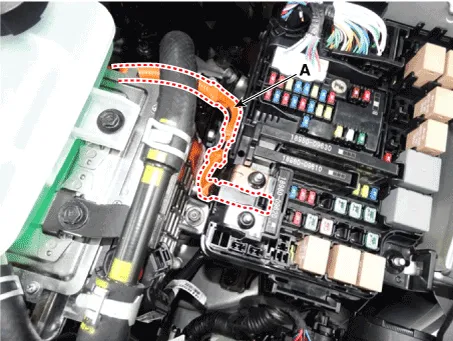

| 4. | Remove the positive (+) cable (A) after loosening the mounting nut.
|
| 5. | Remove the high voltage battery inlet cooling duct. (Refer to High Voltage Battery Cooling System - "Cooling Duct") |

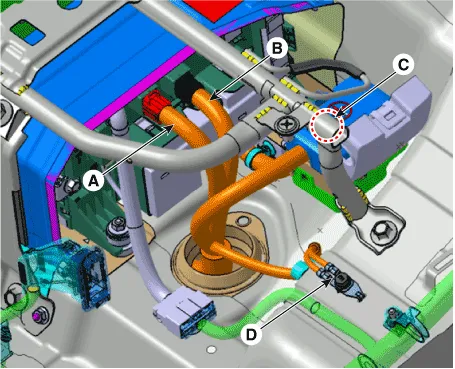

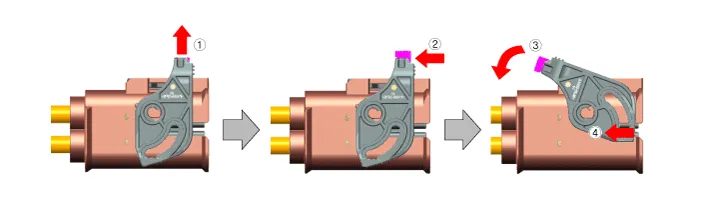

| 6. | Disconnect the power cable connector (-) (A) and power cable connector (+) (B). |
| 7. | Disconnect the auxiliary 12V battery positive (+) cable after loosening the mounting nut (C). |
| 8. | Disconnect the ground cable (D) after loosening the mounting bolt.
|
| 9. | Lift the vehicle. |

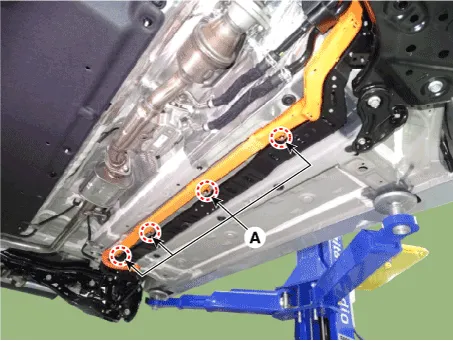

| 10. | Remove the side under cover (A) after loosening the mounting bolts and nuts.
|

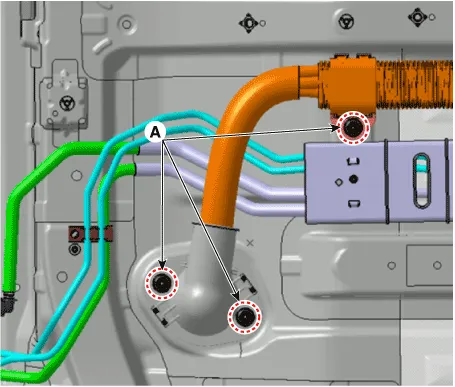

| 11. | Remove the power cable after loosening the mounting nuts (A).
|
| Installation |
|
| 1. | Install in the reverse order of removal.
|
Components1. Power Cable (Main)2. Power Cable (Inverter ↔ HSG & A/C Electric Compressor)
