Hyundai Ioniq (AE): Body Side Molding / Roof Side Molding. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Body Side Molding / Roof Side Molding. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
1.

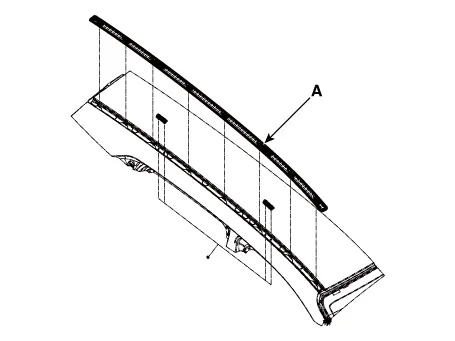

Using a screwdriver or remover, remove the roof side molding (A).

•
Always replace the roof side molding to a new one.

2.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).
