Replacement

•	Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Take care not to scratch the body surface.

1.	Loosen the side sill molding mounting clips.

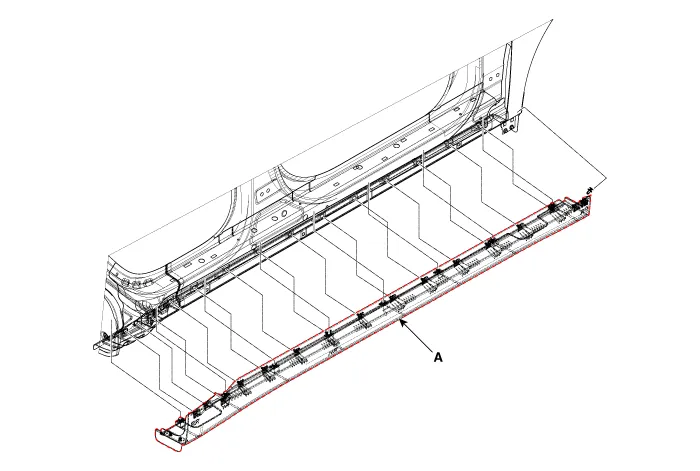

2.	Using a screwdriver or remover, remove the side sill molding (A).

To install, reverse the removal procedure.

•	Replace any damaged clips.
