Hyundai Ioniq (AE): Body Side Molding / Waist Line Molding. Repair procedures
| Replacement |
|
|

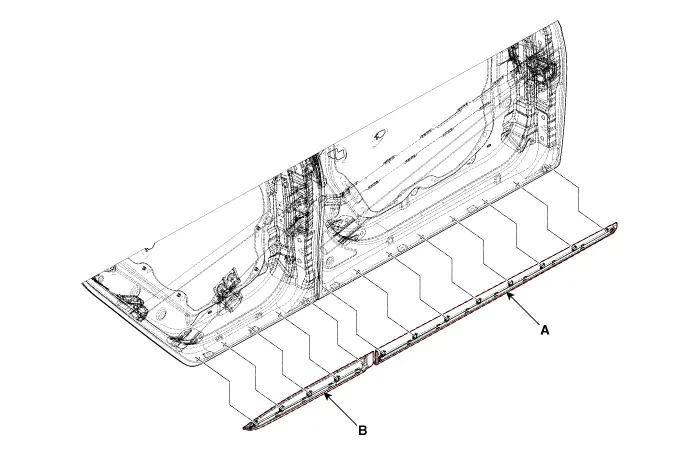

| 1. | Using a screwdriver or remover, remove the front waist line molding (A). |
| 2. | Using a screwdriver or remover, remove the rear waist line molding (B).
|
| 3. | To install, reverse the removal procedure.
|
Replacement • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Replacement • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
