Hyundai Ioniq (AE): Charging the Plug-in Hybrid Vehicle / Scheduled Charging
- You can set-up a charging schedule for your vehicle using the AVN or BlueLink application. Refer to the Multimedia manual or the BlueLink manual for detailed information about setting scheduled charging.
- Scheduled charging can only be done when using a normal charger or the portable charger (ICCB: In- Cable Control Box).

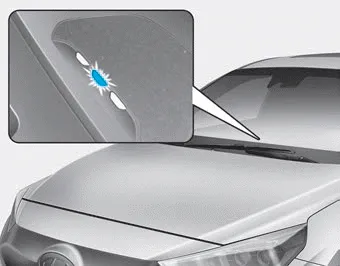

- When scheduled charging is set and the normal charger or the portable charger (ICCB: In-Cable Control Box) is connected for charging, the indicator lamp in the middle blinks (for 3 minutes) to indicate that scheduled charging is set.
- When scheduled charging is set, charging is not initiated immediately when
the normal charger or portable charger (ICCB: In-Cable Control Box) is connected.
When immediate charging is required, use the AVN to deactivate the scheduled

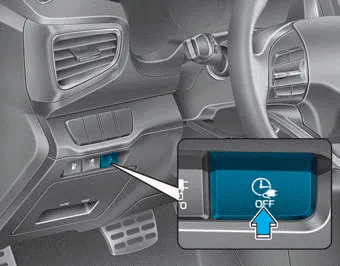

charge setting or press scheduled charging deactivation (
)
button.
- If you press the scheduled charging deactivation (
)
button to immediately charge the battery, charging must be initiated 3 minutes
after the charging cable has been connected.
When you press the scheduled charging deactivation (
)
button for immediate charging, the scheduled charge setting is not completely deactivated.
If you need to completely deactivate the scheduled charge setting, use the AVN to
finalize the deactivation.
Refer to "Normal Charge or Trickle Charge" for details about connecting the normal charger and the portable charger (ICCB: In-Cable Control Box).
You may select when the charging connector can be locked and unlocked in the charging inlet. Press the button to change between AUTO mode and LOCK mode.
â– Normal Charger Actual charger image and charging method may vary in accordance with the charger manufacturer. WARNING Electromagnetic waves that are generated from the charger can seriously impact medical electric devices such as an implantable cardiac pacemaker.
