Hyundai Ioniq (AE): Immobilizer System / Schematic diagrams

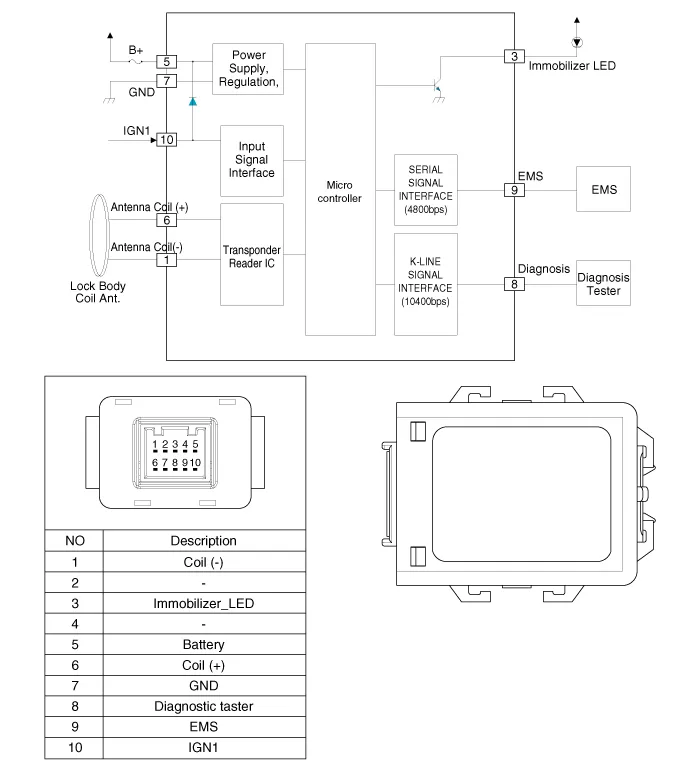

| Circuit Diaram |
DescriptionThe immobilizer system will disable the vehicle unless the proper ignition key is used, in addition to the currently available anti-theft systems such as car alarms, the immobilizer system aims to drastically reduce the rate of auto theft.
