Hyundai Ioniq (AE): Seat Electrical / Seat Heater. Schematic diagrams

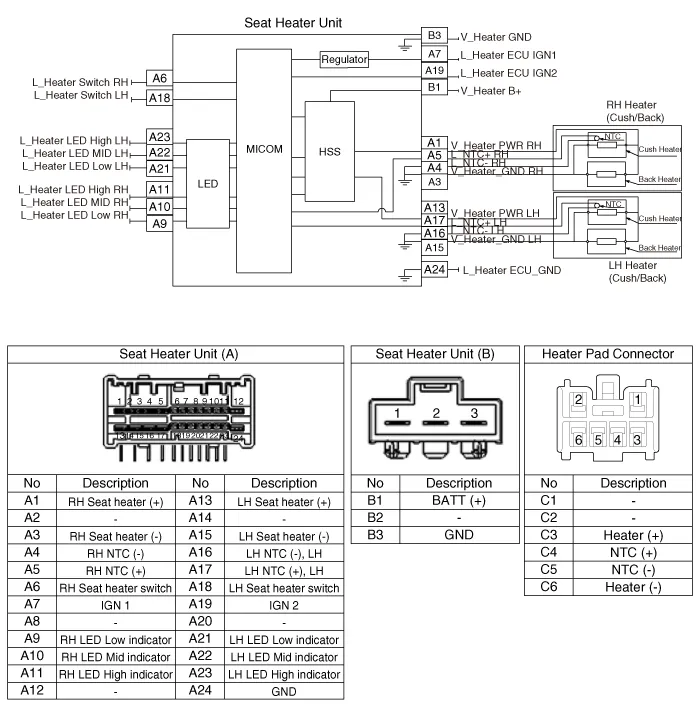

| Circuit Diagram |
Component Location[Front Seat Heater (Non-Air ventilation)]1. Seat heater unit (Passenger seat only)2. Seat chusion heater3. Seat back (Heater)[Front Seat Heater (Air ventilation)]1.
InspectionFront Seat Heater1.Check for continuity and measure the resistance between terminals No 3 and No 6. Standard value Driver / Assists (cushion + back) : 1.
