Components

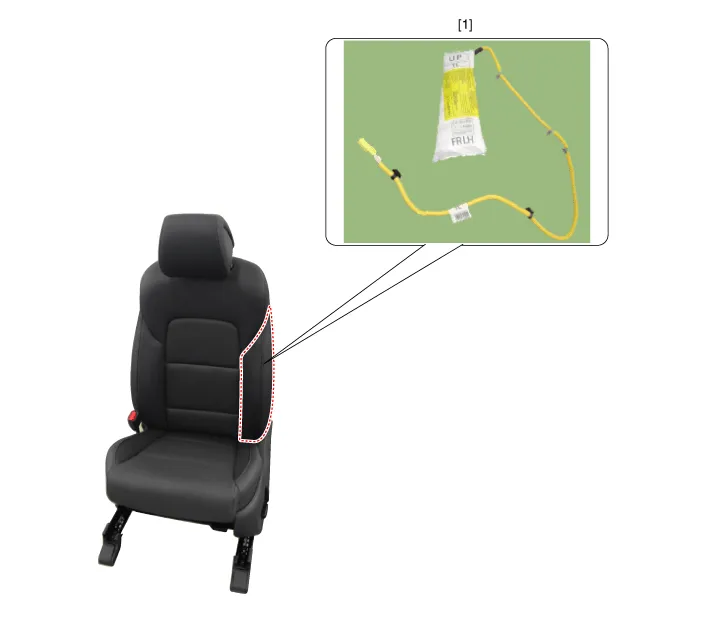

1. Side Air Bag (SAB)


    DescriptionThe Side Airbags (SAB) are installed inside the front seat and protects the driver and passenger from danger when side crash occurs. The SRSCM determines deployment of side airbag by using Side Impact Sensor (SIS) signal.

    Removal 1.Disconnect the negative battery terminal.    â€¢ After disconnecting the cables, wait at least 3 minutes.
