Hyundai Ioniq (AE): Rail Pressure Sensor (RPS) / Specifications

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Control/Fuel System / Engine Control System / Rail Pressure Sensor (RPS) / Specifications

Specification

    DescriptionRail Pressure Sensor (RPS) is installed on the delivery pipe and measures the instantaneous fuel pressure in the delivery pipe. The sensing element (Semiconductor element) built in the sensor converts the pressure to voltage signal.

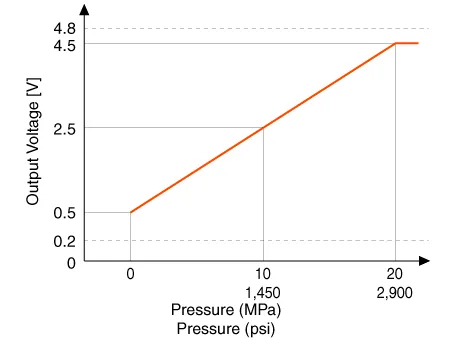

    Signal Waveform

    Other information:

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Components and components location

    C

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Schematic diagrams

    System Block DiagramComponent Parts and Function Outline Component part Function Vehicle-speed sensor, ESP/ABS Control ModuleConverts vehicle speed to pulse.VCUReceives signals from sensor and control switches.
