Hyundai Ioniq (AE): Sunroof / Sunroof Assembly. Components and components location

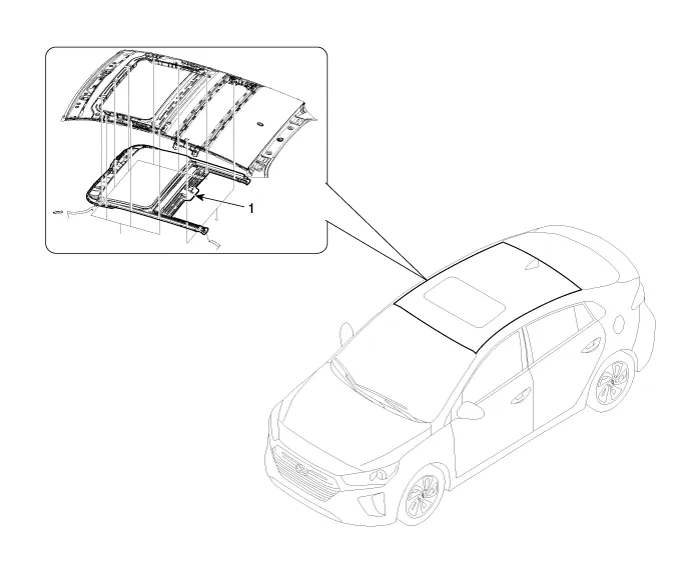

| Components Location |
| 1. Sunroof assembly |
Replacement1.Open the glass fully.2.Remove the mounting pins (C), from the frame (B), and then remove the deflector (A).3.To install, reverse the removal procedure.
Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
