Hyundai Ioniq (AE): Sunroof / Sunroof Deflector. Repair procedures
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Sunroof / Sunroof Deflector. Repair procedures
| Replacement |
| 1. | Open the glass fully. |

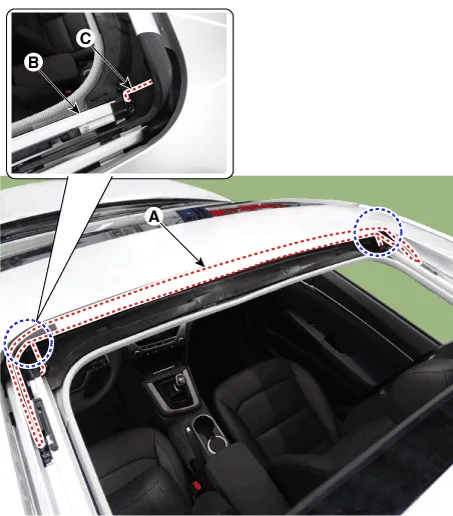

| 2. | Remove the mounting pins (C), from the frame (B), and then remove the deflector (A).
|
| 3. | To install, reverse the removal procedure. |
