Hyundai Ioniq (AE): Sunroof / Sunroof Glass. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Sunroof / Sunroof Glass. Repair procedures

Replacement

•
Put on glove to protect your hands.
1.
Close the sunroof glass completely by pressing the sunroof switch.
2.

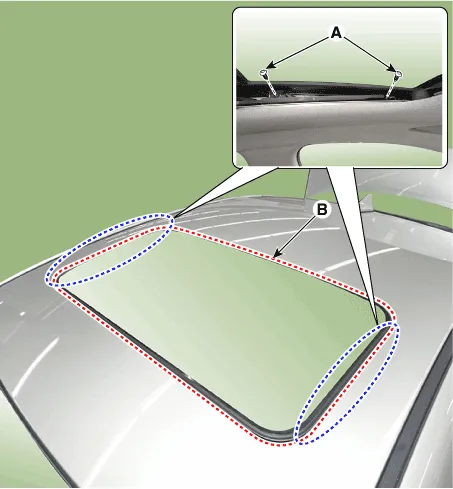

Loosen the mounting screws (A) and remove the sunroof glass (B).

•
Do not damage the roof panel.

3.
To install, reverse the removal procedure.

•
After replacing the movable glass adjust the alignment if needed.

    Components Location1. Sunroof glass

    Replacement1.Open the glass fully.2.Remove the mounting pins (C), from the frame (B), and then remove the deflector (A).3.To install, reverse the removal procedure.

    Other information:

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Heater Unit. Components and components location

    Component Location1. Heater unit assemblyCompoents1. Heater core cover2. Heater core & Seal assembly3. Mode actuator [LH]4. Temperature control actuator [LH]5. Shower duct [LH]6. Duct sensor [Floor]7. PTC Heater8. Duct sensor [Vent]9. Heater & Evaporator lower case10.

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Evaporator Core. Repair procedures

    Replacement1.Disconnect the negative (-) battery terminal. 2.Remove the heater and blower assembly.(Refer to Heater - "Heater Unit") 3.Remove the evaporator core cover (A) after loosening the mounting screws.4.Pull out the evaporator temperature sensor (A) from the evaporator core.
