Hyundai Ioniq (AE): What to do in an emergency / Towing

Towing Service

Hyundai Ioniq. Towing

If emergency towing is necessary, we recommend having it done by an authorized HYUNDAI dealer or a commercial tow-truck service.

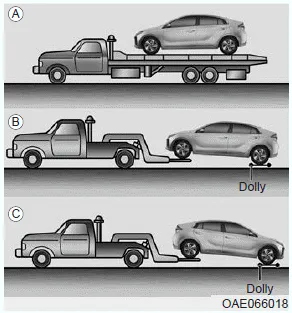

Proper lifting and towing procedures are necessary to prevent damage to the vehicle. The use of wheel dollies or flatbed is recommended.

It is acceptable to tow the vehicle with the rear wheels on the ground (without dollies) and the front wheels off the ground.

If any of the loaded wheels or suspension components are damaged or the vehicle is being towed with the front wheels on the ground, use a towing dolly under the front wheels.

When being towed by a commercial tow truck and wheel dollies are not used, the front of the vehicle should always be lifted, not the rear.

CAUTION

• Do not tow the vehicle with the front wheels on the ground as this may cause damage to the vehicle.

Hyundai Ioniq. Towing

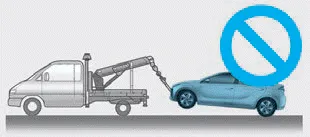

• Do not tow with sling-type equipment. Use wheel lift or flatbed equipment.

Hyundai Ioniq. Towing

When towing your vehicle in an emergency without wheel dollies :

1. Place the Engine Start/Stop button in the ACC position.

2. Place the shift lever in N (Neutral).

3. Release the parking brake.

CAUTION

Failure to place the transmission shift lever in N (Neutral) may cause internal damage to the transmission.

1. After driving approximately 4~6 miles (7~10 km or about 10 minutes), stop at a safe location. 2. Connect the filling hose (3) directly into the compressor.

1. Open the liftgate, and take the towing hooks out from the tool case. â–  Front â–  Rear 2. Remove the hole cover by pressing the lower part of the cover on the front or rear bumper.
