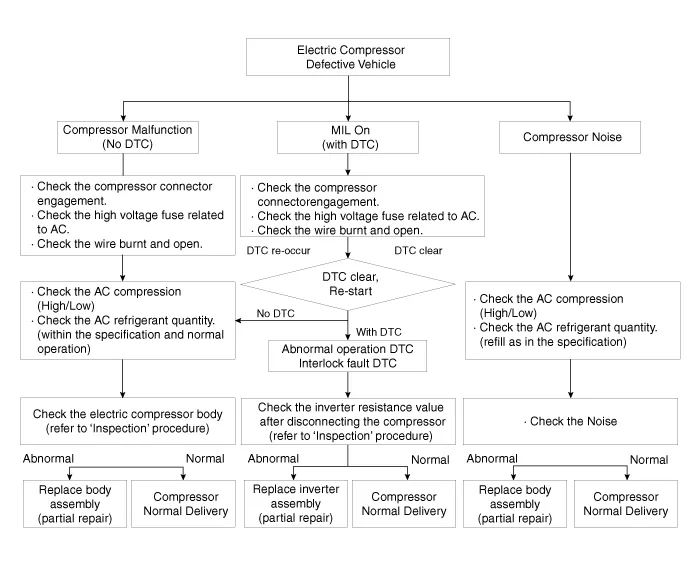

| Troubleshooting |

Connector ConfigurationsTerminal Function Connector Pin No. Function A112V Power Ground2Climate CAN Low3Interlock (-)412V Power5Climate CAN High6Interlock (+)B1High Voltage Power2High Voltage Ground3Compressor Interlock (-)4Compressor Interlock (+)
Inspection[Electric A/C Compressor body inside inspection]1.Electric compressor body inside check procedure.1)Remove the low-pressure pipe from the electric compressor.
Component Location1. Heater unit assemblyCompoents1. Heater core cover2. Heater core & Seal assembly3. Mode actuator [LH]4. Temperature control actuator [LH]5. Shower duct [LH]6. Duct sensor [Floor]7. PTC Heater8. Duct sensor [Vent]9. Heater & Evaporator lower case10.
DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.
