Hyundai Ioniq (AE): Audio / USB jack. Repair procedures
| Removal |
| 1. | Disconnect the battery (-) terminals. |
| 2. | Remove the floor console assembly. (Refer to Body - "Floor Console Assembly") |

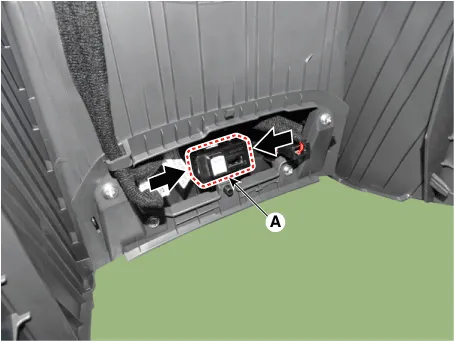

| 3. | Remove the jack (A) from the console under cover after releasing the fixed hooks.
|
| Installation |
| 1. | Connect the multimedia jack connector. |
| 2. | Install the multimedia jack. |
| 3. | Install the floor console assembly. |
DescriptionThe multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 etc., through the vehicle's sound system when it is linked to this jack.
