Hyundai Ioniq: Clutch System / Clutch Cover And Disc. Components and components location

Hyundai Ioniq (AE) 2017-2024 Service Manual / Engine Clutch System / Clutch System / Clutch Cover And Disc. Components and components location

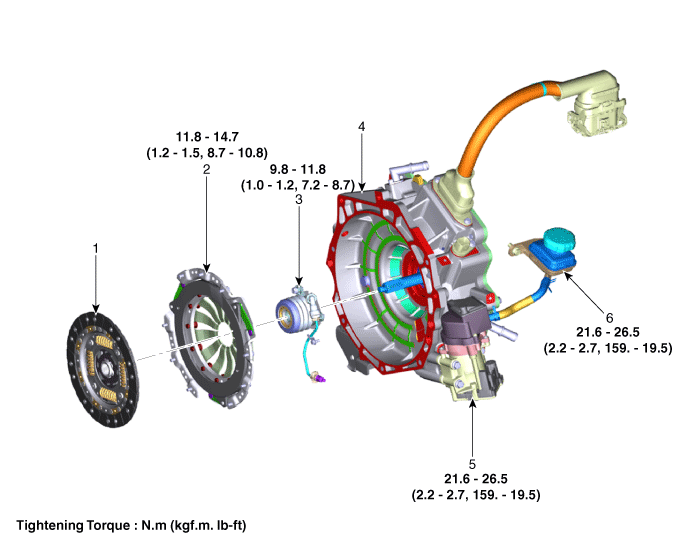

Components

1. Clutch disc
2. Clutch cover
3. Concentric slave cylinder
4. Hybrid motor assembly
5. Engine clutch actuator
6. Reservoir

    Concentric Slave Cylinder Assembly. Repair procedures

    Removal1.Remove the hybrid motor assembly.(Refer to Hybrid Motor System - "Hybrid Motor Assembly")2.Remove the engine clutch actuator.(Engine Clutch System - "Engine Clutch Actuator")3...

    Clutch Cover And Disc. Repair procedures

    Removal1.Remove the hybrid motor assembly.(Refer to Hybrid Motor System - "Hybrid Motor Assembly")2.Remove the clutch cover assembly and clutch disc after loosening the bolts...
