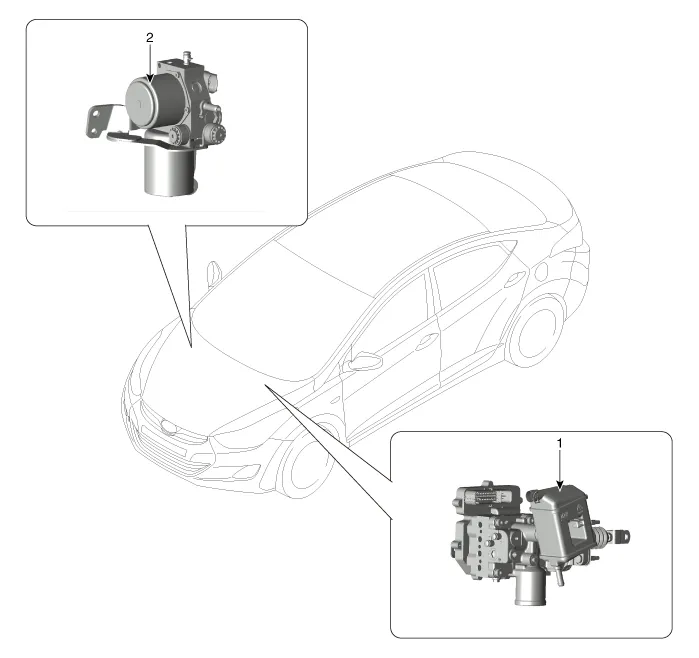

Components

1. Intergrated Brake Actuation Unit
2. Pressure Source Unit

    Description and operation

    DescriptionRegeneration Brake SystemDuring deceleration or braking of an electric vehicle or HEV, the drive motor acts as an alternator and charges the battery by converting the vehicle’s kinetic energy generated during braking into electrical energy...
