Hyundai Ioniq (AE): AHB(Active Hydraulic Boost) System / Schematic diagrams

Terminal Function

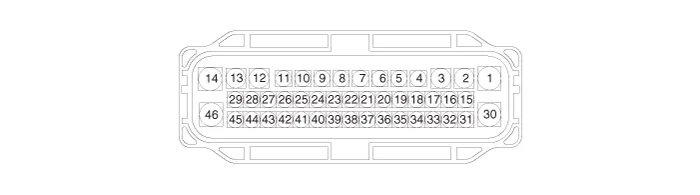

IBAU Connector Input / Output

No
Description
No
Description
1
E/R Fuse & Relay Box
(Multi Fuse - AHB)
24
Electric Parking Brake Switch
(Auto Hold Swutch)
2
PSU Motor (+)
25
-
3
-
26
Parking Brake Switch
4
Shield Cable Ground
27
Rear Wheel Sensor LH (SIG)
5
E/R Fuse & Relay Box
PSU Motor (GND)
28
Front Wheel Sensor LH (SIG)
6
Brake Pedal Module (PDT PWR)
29
Driver Door Switch
7
Brake Pedal Module (PDF PWR)
30
E/R Fuse & Relay Box
(Multi Fuse - AHB 2)
8
E/R Fuse & Relay Box
(Stop Signal Electronic Module)
31
Brake Pedal Module (PDF GND)
9
-
32
-
10
Brake Pedal Module (PDT GND)
33
Rear Wheel Sensor LH (VCC)
11
Shield Cable Ground
34
Rear Wheel Sensor RH (VCC)
12
-
35
-
13
PSU Motor (-)
36
Brake light switch
14
Ground
37
-
15
-
38
C-CAN (High)
16
Crash Pad Switch (ESC OFF Switch)
39
C-CAN (Low)
17
Front Wheel Sensor LH (VCC)
40
Vehicle Speed :
Smart Key Control Module, PCM
18
Front Wheel Sensor RH (VCC)
41
-
19
P-CAN (High)
42
Front Wheel Sensor RH (SIG)
20
P-CAN (Low)
43
Rear Wheel Sensor RH (SIG)
21
ESS Drive
44
Stop Lamp Switch
22
Brake Pedal Module (PDT SIG)
45

23
Brake Pedal Module (PDF SIG)
46
Ground (GE06)

    Components1. Intergrated Brake Actuation Unit 2. Pressure Source Unit
