Hyundai Ioniq: Crash Pad / Components and components location
Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Crash Pad / Components and components location
| Components |

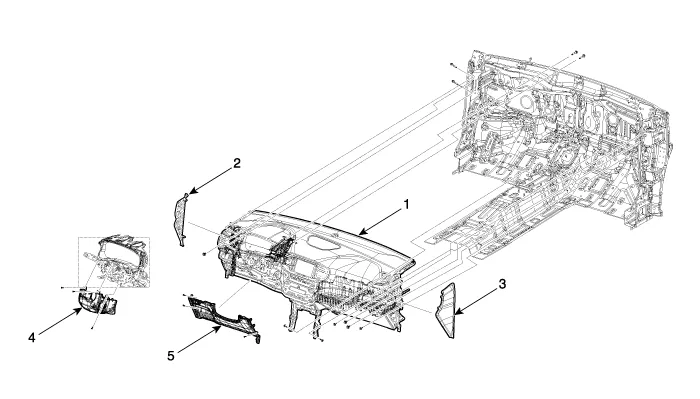

| 1. Crash pad assembly 2. Crash pad side cover [LH] 3. Crash pad side cover [RH] | 4. Steering column shroud lower panel 5. Crash pad lower panel |
