Hyundai Ioniq (AE): Roof Trim / Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Roof Trim / Components and components location

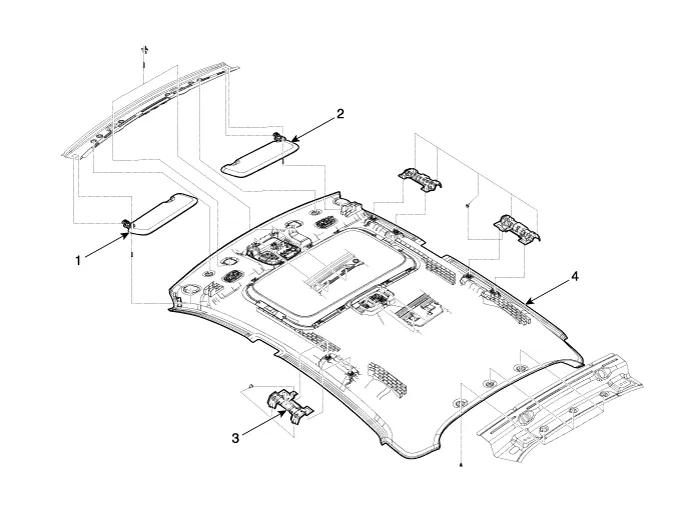

Components (1)
[General Type]

1. Sunvisor [LH]
2. Sunvisor [RH]
3. Assist handle
4. Roof trim

Components (2)
[Sunroof Type]

1. Sunvisor [LH]
2. Sunvisor [RH]
3. Assist handle
4. Roof trim

    Component Location 1. Sunvisor2. Retainer
