Hyundai Ioniq: Cylinder Head Assembly / Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Engine Mechanical System / Cylinder Head Assembly / Components and components location

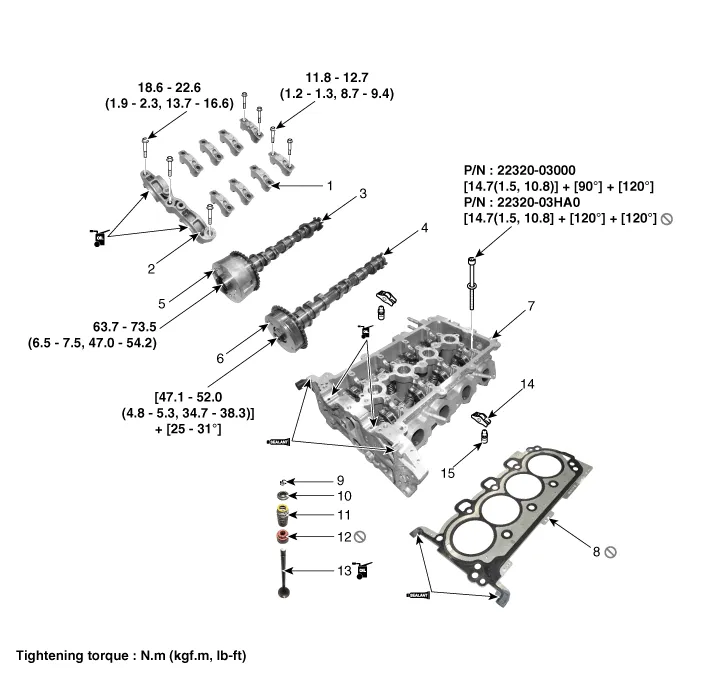

Components

1. Camshaft bearing cap
2. Front camshaft bearing cap
3. Exhaust camshaft
4. Intake camshaft
5. Exhaust CVVT assembly
6. Intake CVVT assembly
7. Cylinder head assembly
8. Cylinder head gasket
9. Retainer lock
10. Retainer
11. Valve spring
12. Valve stem seal
13. Valve
14. Swing arm
15. Hydraulic lash adjuster (HLA)
