Hyundai Ioniq. Detecting sensor

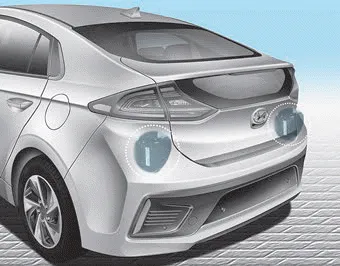

The sensors are located inside the rear bumper.

Always keep the rear bumper clean for the proper operation of the system.

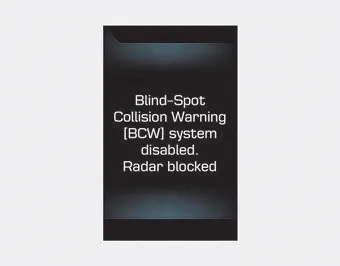

Warning message

Blind-Spot Collision Warning (BCW) system disabled. Radar blocked

Hyundai Ioniq. Detecting sensor

This warning message may appear when : - One or both of the sensors on the rear bumper is blocked by dirt or snow or a foreign object.
- Driving in rural areas where the BCW sensor does not detect another vehicle for an extended period of time.
- When there is inclement weather such as heavy snow or rain.

If any of these conditions occur, the light on the BCW switch and the system will turn off automatically.

When the BCW canceled warning message is displayed in the cluster, check to make sure that the rear bumper is free from any dirt or snow in the areas where the sensor is located. Remove any dirt, snow, or foreign material that could interfere with the radar sensors.

After any dirt or debris is removed, the BCW system should operate normally after about 10 minutes of driving the vehicle.

If the system still does not operate normally have your vehicle inspected by an authorized HYUNDAI dealer.

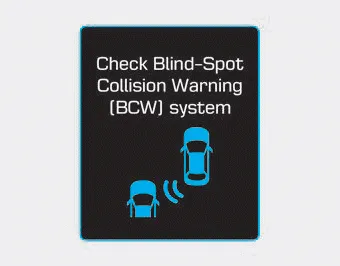

Check Blind-Spot Collision Warning (BCW) system

Hyundai Ioniq. Detecting sensor

If there is a problem with the BCW system, a warning message will appear and the light on the switch will turn off. The system will turn off automatically. Have your vehicle inspected by an authorized HYUNDAI dealer.

    Warning type

    If the vehicle detected by the sensors approaches your vehicle, the warning chime will sound, the warning light on the outer side view mirror will blink and a message will appear on the LCD display...

    Limitations of the system

    The driver must be cautious in the below situations, because the system may not detect other vehicles or objects in certain circumstances. When a trailer or carrier is installed...
