Hyundai Ioniq (AE): Clutch System / Engine Clutch Actuator. Schematic diagrams

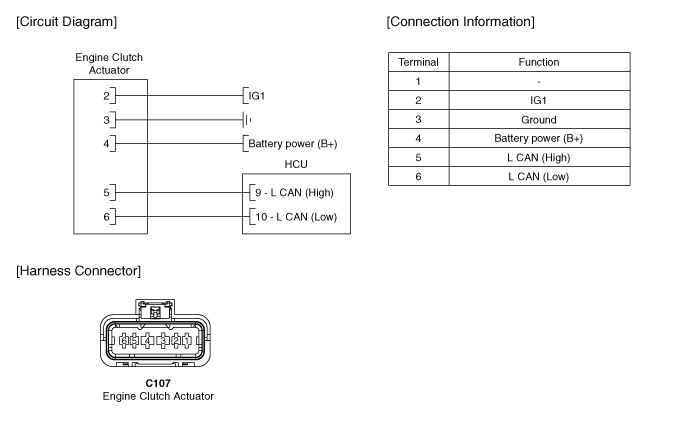

| Circuit Diagram |
Specifications Items Specifications Operation methodBLDC MotorInput voltage (V)12Max power (W)480Operating temperature (°C)- 30 to 105 °CResistance (Ω)120Max pressure43 bar
Removal1.Turn the ignition switch OFF and disconnect the battery (-) terminal. 2.Remove the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")3.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Evaporator Temperature Sensor. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the evaporator temperature sensor connector.3.Measure the resistance between terminal "+" and "-" of the evaporator temperature sensor.Specification Evaporator core temperature [°C (°F)] Resistance [KΩ]
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Photo Sensor. Description and operation
Description The photo sensor is located at the center of the defrost nozzles.The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is transferred to the automatic temperature control
