Hyundai Ioniq: Normal Charge / How to Connect Normal Charger

Hyundai Ioniq (AE) 2017-2021 Owner's Manual / Hybrid System Overview / Charging the Plug-in Hybrid Vehicle / Normal Charge / How to Connect Normal Charger

1. Depress the brake pedal and apply the parking brake.

2. Turn OFF all switches, shift to P (Park), and turn OFF the vehicle.

Hyundai Ioniq. How to Connect Normal Charger

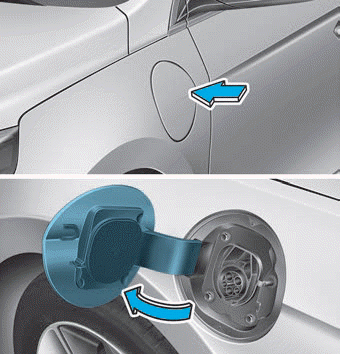

3. Press center edge of the charging door to open the charging door.

Information

The charging door opens only when the door is unlocked.

4. Check if there is dust on the charging connector and charging inlet.

Hyundai Ioniq. How to Connect Normal Charger

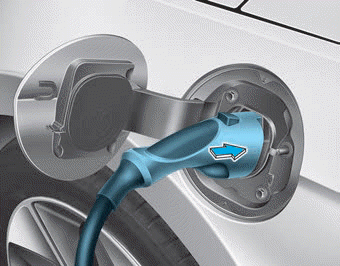

5. Hold the charging connector handle and connect it to the vehicle normal charging inlet. Push the connector until you hear a "clicking" sound. If the charging connector and charging terminal are not connected properly, this may cause a fire.

Information

Charging connector AUTO/LOCK mode

The charging connector is locked in the inlet at a different period according to which mode is selected.

  • LOCK mode : The connector locks when the charging connector is plugged into the charging inlet.
  • AUTO mode : The connector locks when charging starts. For more details, refer to "Charging Connector AUTO/LOCK Mode" in this chapter.

Hyundai Ioniq. How to Connect Normal Charger

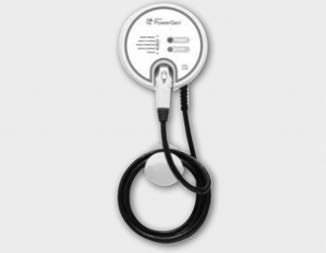

■ Normal Charger

6. Connect the charging plug to the electric outlet at a normal charging station to start charging.

Hyundai Ioniq. How to Connect Normal Charger

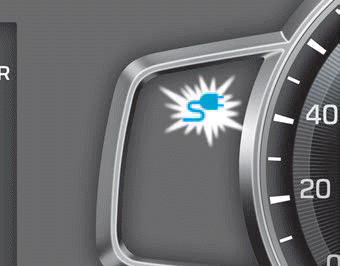

7. Check if the charging indicator light of the high voltage battery on the instrument cluster is turned ON. Charging is not done when the charging indicator lamp is OFF.

When the charging connector and charging plug are not connected properly, reconnect the charging cable to charge.

Information

  • Even though charging is possible with the Engine Start/Stop button in the ON/START position, for your safety, start charging when the Engine Start/Stop button is in the OFF position and the vehicle shifted to P (Park). After charging has started, you can use electrical components such as the radio by pressing the Engine Start/Stop button to the ACC or ON position.
  • During normal charging, the radio reception may be bad.
  • Moving the shift lever from P (Park) to R (Reverse)/N (Neutral)/D (Drive) stops the charging process. To restart the charging process, move the shift lever to P (Park), place the Engine Start/Stop button to the OFF position, and disconnect the charging cable. Then, connect the charging cable.

Hyundai Ioniq. How to Connect Normal Charger

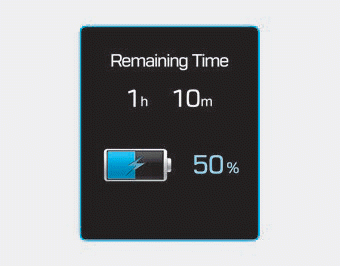

8. After charging has started, the estimated charging time is displayed on the instrument cluster for about 1 minute.

If you open the driver seat door while charging, the estimated charging time is also displayed on the instrument cluster for about 1 minute.

When scheduled charging is set, the estimated charging time is displayed as "--".

Information

Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temperature, the time required for charging the battery may vary.

    Normal Charge

    ..
