Hyundai Ioniq (AE): Charging the Plug-in Hybrid Vehicle / Normal Charge

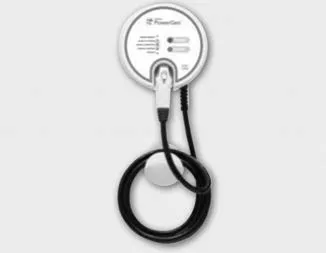

â– Normal Charger
Actual charger image and charging method may vary in accordance with the charger manufacturer.
- How to Connect Normal Charger
- Checking Charging Status
- How to Disconnect Normal Charger
- Unlock Charging Connector in Emergency
â– Normal Charger Actual charger image and charging method may vary in accordance with the charger manufacturer. WARNING Electromagnetic waves that are generated from the charger can seriously impact medical electric devices such as an implantable cardiac pacemaker.
1. Depress the brake pedal and apply the parking brake. 2. Turn OFF all switches, shift to P (Park), and turn OFF the vehicle. 3. Press center edge of the charging door to open the charging door.
