Hyundai Ioniq: Hybrid Motor Assembly / Hybrid Drive Motor Assembly. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Hybrid Motor System / Hybrid Motor Assembly / Hybrid Drive Motor Assembly. Components and components location

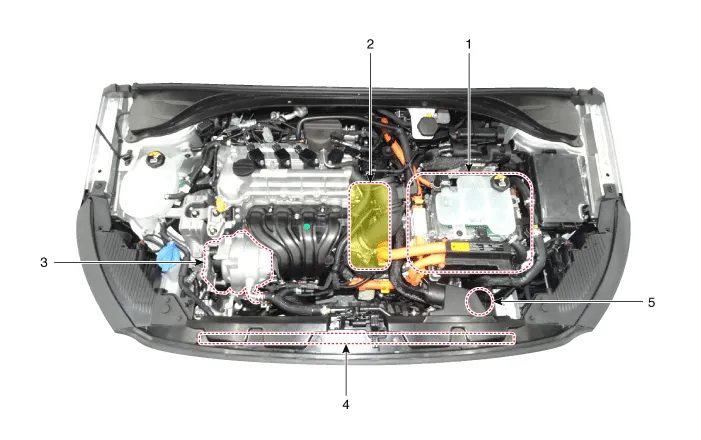

Component location

1. HPCU (Hybrid Power Control Unit)
(LDC+MCU+HCU+Reservoir)
2. Hybrid drive motor
3. Hybrid starter generator (HSG)
4. Electrical radiator
5. Electric water pump (EWP)

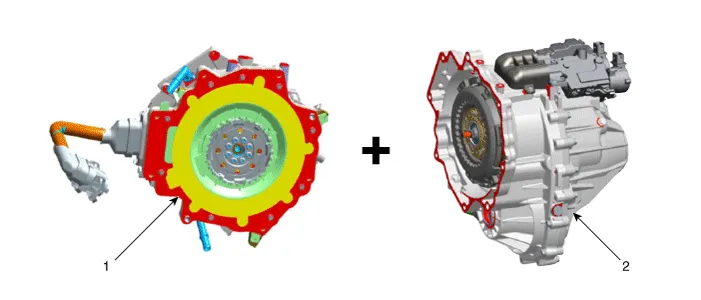

Components

1. Hybrid motor assembly
2. Double clutch transmission (DCT)

    Description and operation

    DescriptionHybrid motor system is equipped with two electric motors.These motors include the drive motor and the HSG that plays the role of starter motor and alternator (generator)...

    Hybrid Drive Motor Assembly. Repair procedures

    Inspection1.Use the mΩ tester to check the line resistance. Category Inspection area Inspection criteria Remarks Resistance(Line- Line)U - V35...
