Hyundai Ioniq: Hybrid Motor Cooling System / Radiator. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Hybrid Motor System / Hybrid Motor Cooling System / Radiator. Components and components location

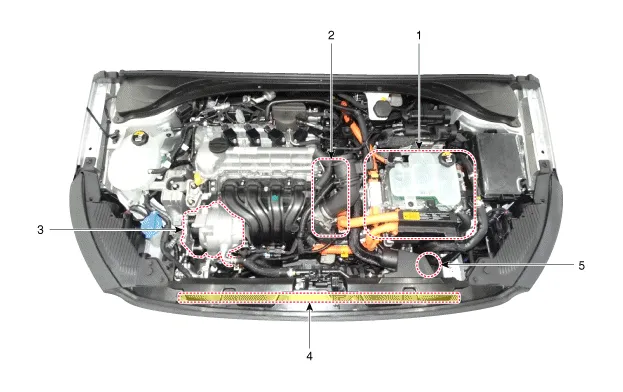

Component location

1. HPCU (Hybrid Power Control Unit)
(LDC+MCU+HCU+Reservoir)
2. Hybrid drive motor
3. Hybrid starter generator (HSG)
4. Electrical radiator
5. Electric water pump (EWP)

    Coolant. Repair procedures

    Changing the Coolant and Performing Air Bleeding    Never remove the cap while the engine is hot. When you remove the cap from the reservoir, hot coolant may spew out due to the high pressure, causing serious injury...

    Radiator. Repair procedures

    Removal1.Remove the 12 V battery (-) cable.2.Remove the undercover.(Refer to Engine Mechanical System - "Engine Room Undercover".)3.Drain the coolant from the hybrid cooling system...
