Hyundai Ioniq: Seat Belt Restraint System / Rear center seatbelt (3-point rear center seat belt)

Hyundai Ioniq (AE) 2017-2025 Owner's Manual / Safety system of your vehicle / Seat belts / Seat Belt Restraint System / Rear center seatbelt (3-point rear center seat belt)

Hyundai Ioniq. Rear center seatbelt (3-point rear center seat belt)

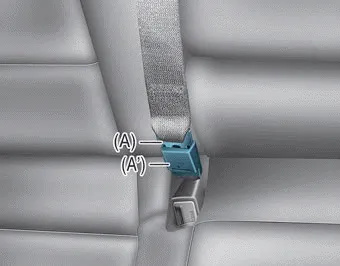

1. Insert the tongue plate (A) into the buckle (A’) until an audible "click" is heard, indicating the latch is locked. Make sure the belt is not twisted.

Hyundai Ioniq. Rear center seatbelt (3-point rear center seat belt)

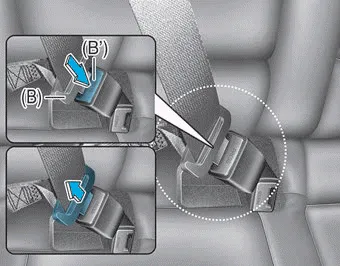

2. Pull the tongue plate (B) and insert it into the buckle (B’) until an audible "click" is heard, indicating the latch is locked. Make sure the belt is not twisted.

When using the rear center seat belt, the buckle with the "CENTER" mark must be used.
