Type A

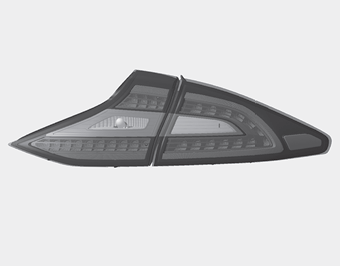

Hyundai Ioniq. Rear Combination Light Bulb Replacement

(1) Tail/Stop lamp
(2) Turn signal lamp
(3) Tail lamp
(4) Back-up lamp
(5) Side marker

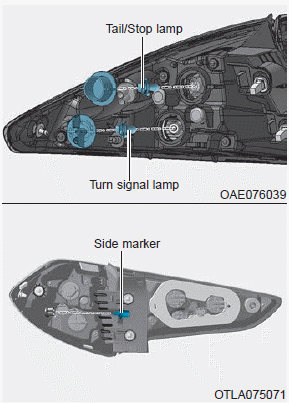

Tail/Stop lamp, turn signal lamp and side marker lamp

Hyundai Ioniq. Rear Combination Light Bulb Replacement

1. Open the liftgate.

2. Open the lamp assembly retaining screw covers.

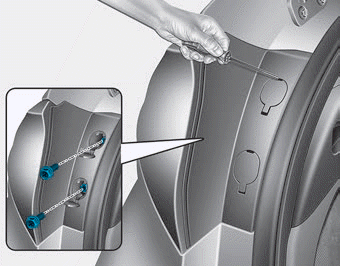

3. Loosen the lamp assembly retaining screws with a cross-tip screwdriver.

Hyundai Ioniq. Rear Combination Light Bulb Replacement

4. Remove the rear combination lamp assembly from the body of the vehicle.

Hyundai Ioniq. Rear Combination Light Bulb Replacement

5. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

6. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

7. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

8. Install the socket into the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

9. Reinstall the lamp assembly to the body of the vehicle.

Tail lamp and back-up lamp

Hyundai Ioniq. Rear Combination Light Bulb Replacement

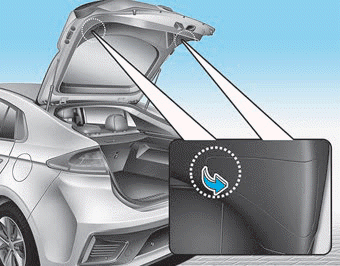

1. Open the liftgate.

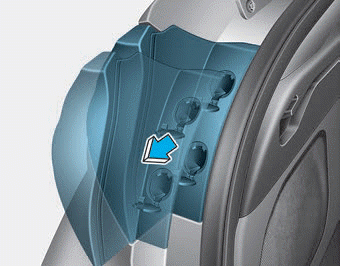

2. Remove the service cover using a flat-blade screwdriver.

Hyundai Ioniq. Rear Combination Light Bulb Replacement

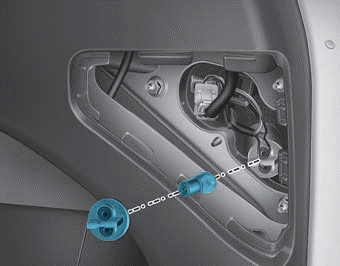

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Pull the bulb out of the socket.

5. Insert a new bulb into the socket.

6. Install the socket into the assembly by aligning the tabs on the socket with the slots on the assembly and turning the socket clockwise.

7. Reinstall the service cover.

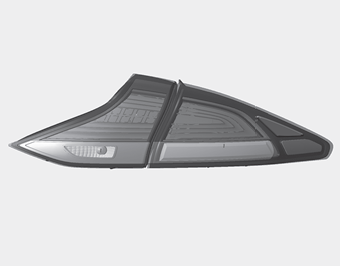

Type B

Hyundai Ioniq. Rear Combination Light Bulb Replacement

(1) Tail lamp
(2) Stop lamp, tail lamp and turn signal lamp
(3) Tail lamp
(4) Back-up lamp
(5) Side marker

Stop lamp, tail lamp, turn signal lamp and side marker

Your vehicle is equipped with LED lamps. LED lamps do not have replaceable bulbs. If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

Backup lamp

Hyundai Ioniq. Rear Combination Light Bulb Replacement

1. Open the liftgate.

2. Remove the service cover using a flat-blade screwdriver.

Hyundai Ioniq. Rear Combination Light Bulb Replacement

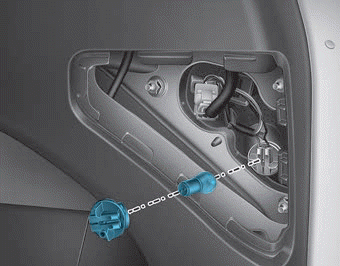

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Remove the bulb by pulling it straight out.

5. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Install the socket into the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

7. Reinstall the service cover.

    Side Repeater Lamp Replacement

    Your vehicle is equipped with LED lamps. LED lamps do not have replaceable bulbs. If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer...

    High Mounted Stop Lamp Replacement

    1. Open the liftgate. 2. Gently remove the cover of the liftgate trim. 3. Remove the spoiler plug hole. 4. Disconnect the electrical connector. 5. Loosen the mounting bolts and remove the spoiler...
