Hyundai Ioniq: Brake System / Rear Disc Brake. Components and components location
[EPB None Apply]
![](images/rear_disc_brake_components_and_components_location-1004/413/saebr7h010l.gif)

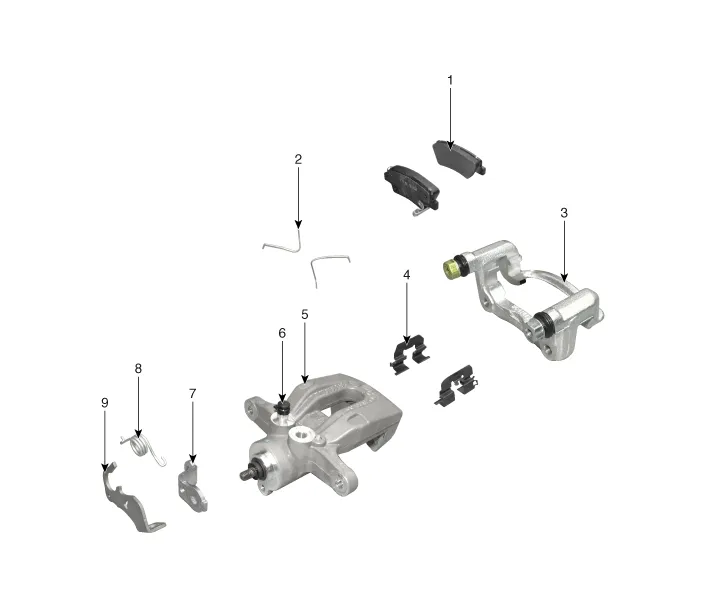

1. Brake pad 2. Pad return spring 3. Caliper carrier 4. Pad retainer 5. Caliper body
| 6. Bleed screw 7. Stopper 8. Return spring 9. Operating lever
|
[EPB Apply]
![](images/rear_disc_brake_components_and_components_location-1004/413/saebr7e101d.gif)

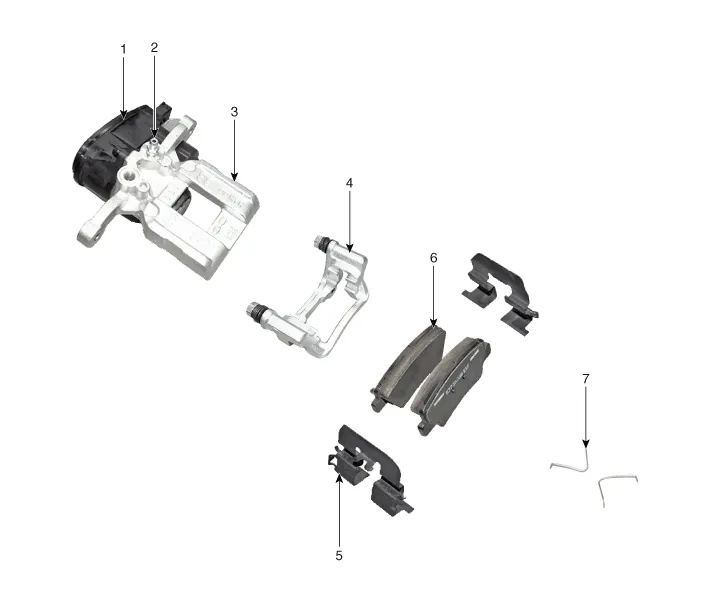

1. EPB Actuator 2. Bleed screw 3. Caliper body 4. Caliper carrier
| 5. Pad retainer 6. Brake pad 7. Pad return spring
|
Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the front wheel and tire (A) from the front hub...
Removal[EPB None Apply]1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the rear wheel and tire (A) from the rear hub...
