Hyundai Ioniq: Lighting System / Rheostat. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body Electrical System / Lighting System / Rheostat. Components and components location

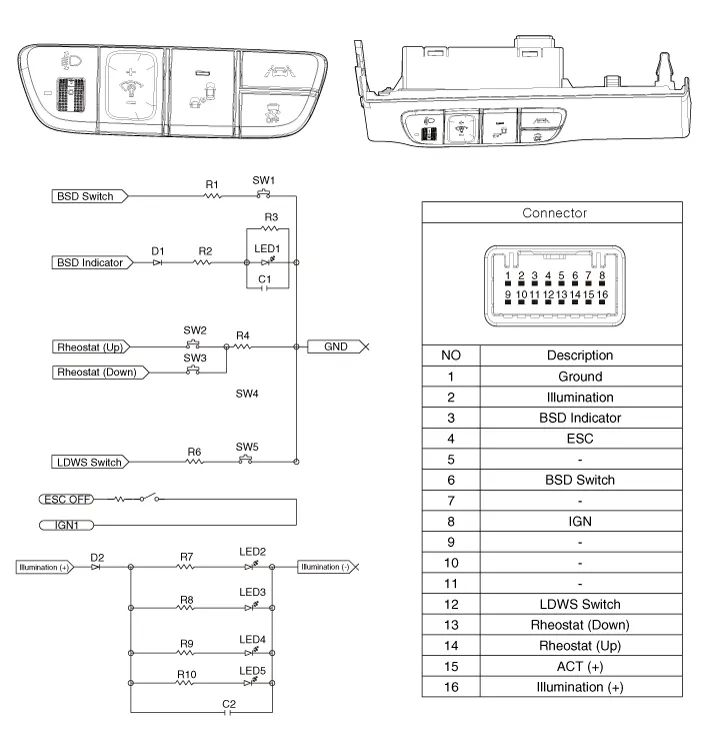

Components

Hazard Lamp Switch. Repair procedures

Inspection1.The SJB can be diagnosed by using the GDS. The SJB communicates with the GDS which then displays inputs and outputs along with codes. It will be able to diagnose defects of hazard lamp switch with GDS quickly...

Rheostat. Repair procedures

Inspection1.Disconnect the negative (-) battery terminal.2.Remove the crash pad lower panel.(Refer to Body - "Crash Pad Lower Panel")3.Disconnect the rheostat switch connector (A)...

Other information:

Hyundai Ioniq (AE) 2017-2025 Service Manual: Drive Belt Tensioner. Repair procedures

Removal and Installation1.Remove the drive belt.(Refer to Timing System - "Drive Belt")2.Remove the mechanical tensioner (A). Tightening torque : 18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)3.Remove the hydraulic tensioner.(1)Remove the hydraulic tensioner mounting bolts (A)...

Hyundai Ioniq (AE) 2017-2025 Service Manual: Troubleshooting

Signal WaveformThis example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle. The PCM controls the injection and ignition timing by using these signals. Generally CKPS signal is used to detect the piston's position and CMPS signal is used to detect the Top Dead Center of each cylinder...
