Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / AVN System / AVN Antenna. Components and components location
| Components |
Components

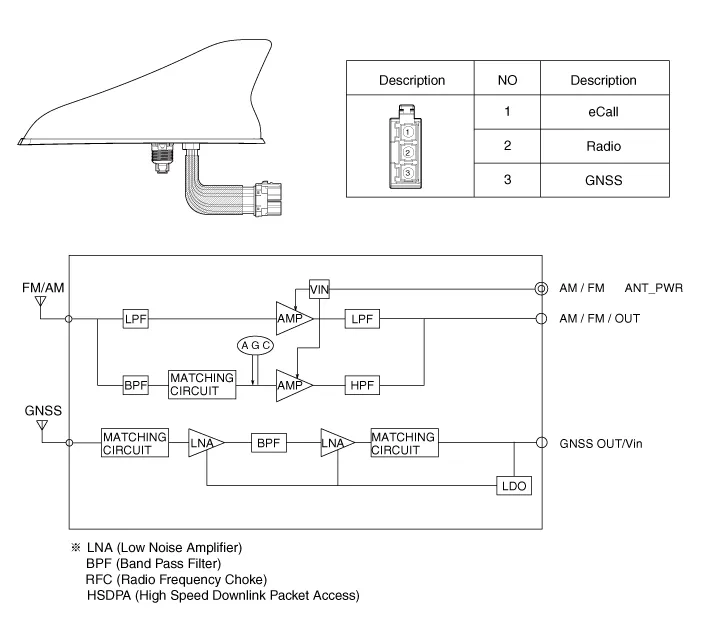

RADIO+GNSS+eCall

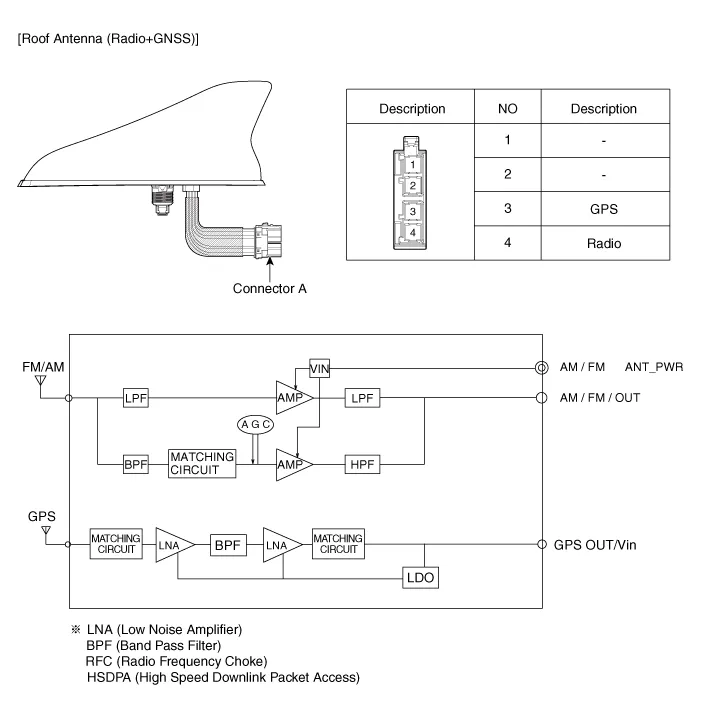

RADIO+GNSS

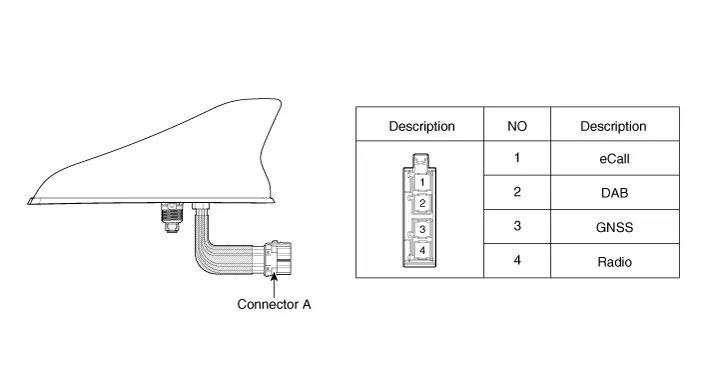

RADIO+GNSS+DAB+eCall

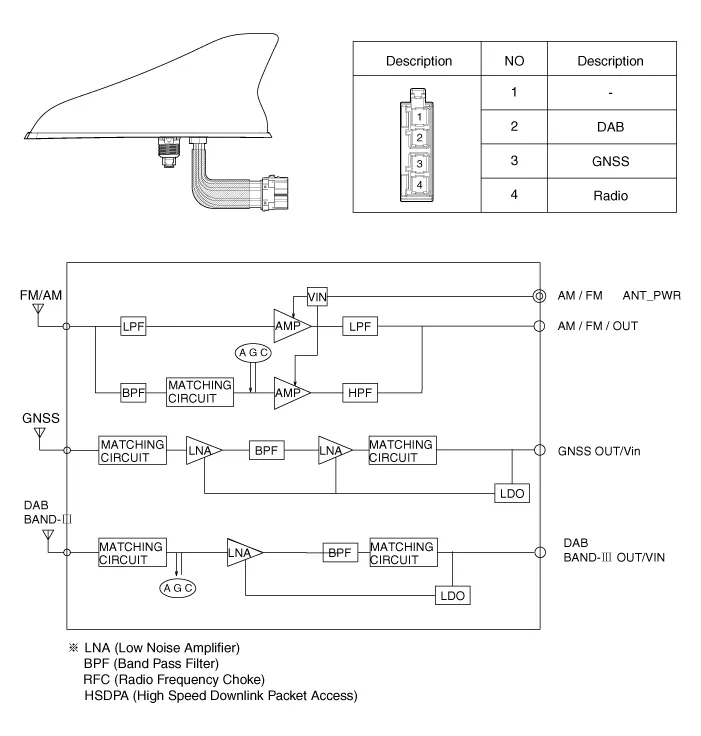

RADIO+GPS
Inspection1.Check for resistance between terminals in each switch position (LH).[LH : Audio+B/TOOTH+VOICE] Switch Connector terminal Resistance (±5%) SEEK Up1-6430 ΩSEEK Down1.
InspectionAntenna Cable1.Check for continuity between the center poles of antenna cable.2.Check for continuity between the outer poles of antenna cable.
