Hyundai Ioniq (AE): Driveshaft Assembly / BJ Boot. Components and components location

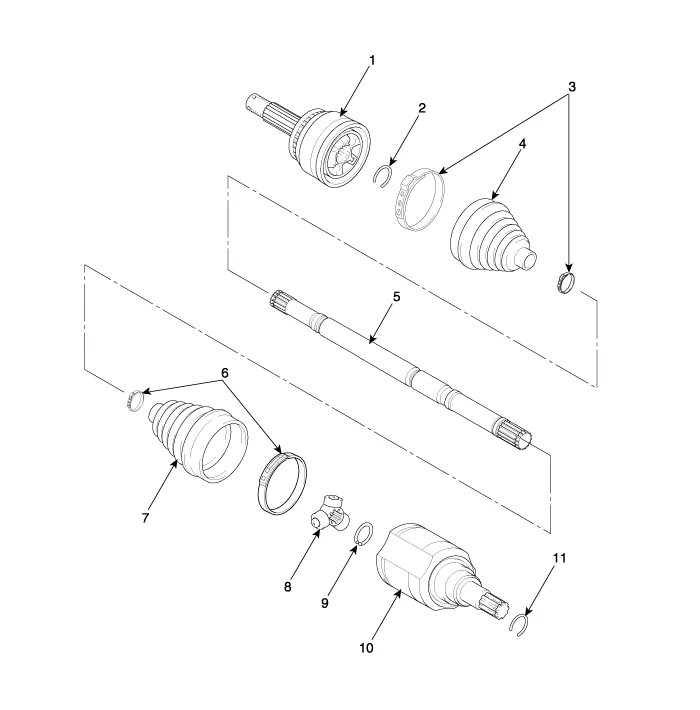

| Components |
| 1. BJ assembly 2. Circlip 3. BJ boot band 4. BJ boot | 5. Shaft 6. TJ boot band 7. TJ boot 8. Spider assembly | 9. Snap ring 10. TJ Case 11. Clip |
Disassembly • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
Replacement1.Remove the front driveshaft. (Refer to Driveshaft Assembly - "Front Driveshaft")2.Remove the TJ joint assembly. (Refer to Driveshaft Assembly - "TJ Joint")3.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Photo Sensor. Description and operation
Description The photo sensor is located at the center of the defrost nozzles.The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is transferred to the automatic temperature control
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.Verify that the mode control actuator operates to the vent mode when connected in reverse.
