Hyundai Ioniq (AE): Brake System / Brake Pedal. Components and components location
| Components |

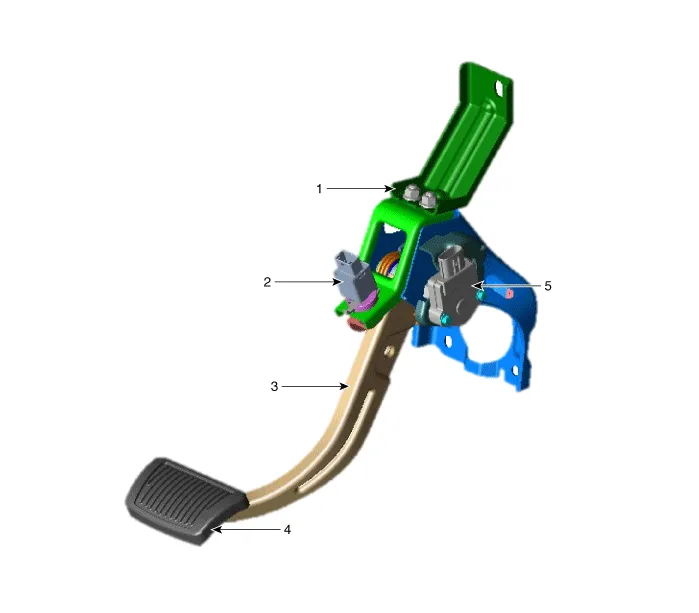

| 1. Brake pedal member assembly 2. Stop lamp switch 3. Brake pedal arm | 4. Brake pedal pad 5. Brake pedal stroke sensor |
Removal1.Disconnect the brake fluid level switch connector, and remove the reservoir cap.2.Remove the brake fluid from the master cylinder reservoir with a syringe.
Removal1.Turn ignition switch OFF and disconnect the negative (-) battery cable.2.Remove the crash pad lower panel. (Refer to Body - "Crash Pad")3.Remove the knee air bag.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Description and operation
DescriptionBlcok DiagramFunctions of Front View CameraFront View Camera supports the following functions using the information (lane, light source, vehicle and pedestrian) detected by the front view camera and the vehicle's signal information (CAN communication).
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Front Radar Unit. Repair procedures
Removal1.Remove the front bumper.(Refer to Body - "Front Bumper")2.Disconnect the smart cruise control unit connector (A).3.Remove the smart cruise control nuit assembly (B) from thevehicle after loosening mounting bolts.Installation1.Install in the reverse order of removal.
