Hyundai Ioniq (AE): Multifunction Switch / Components and components location

Component

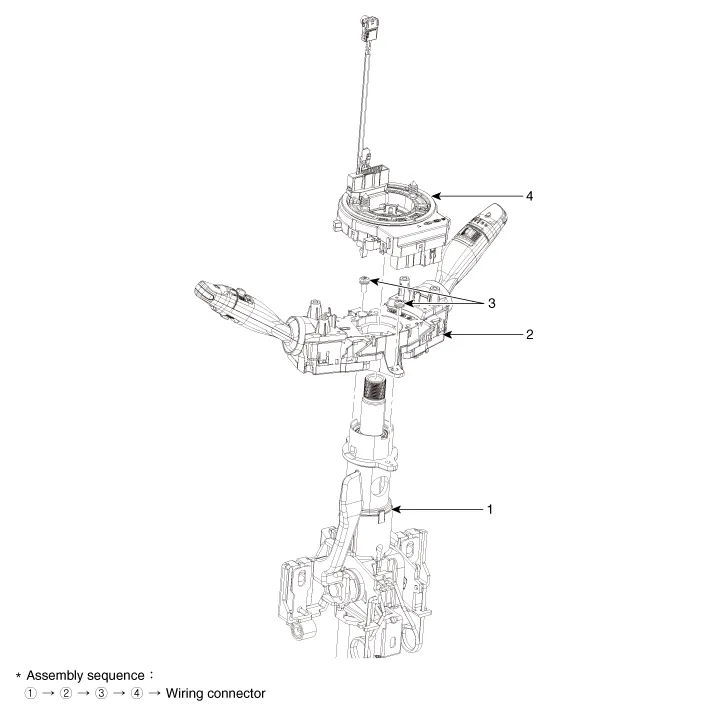

1. Steering column

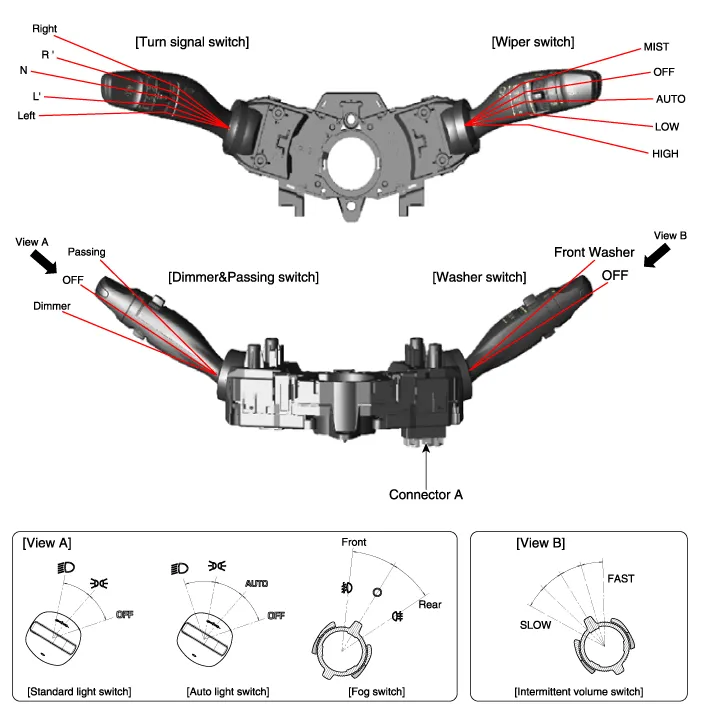

2. Multifunction switch
3. Screw
4. Clock spring

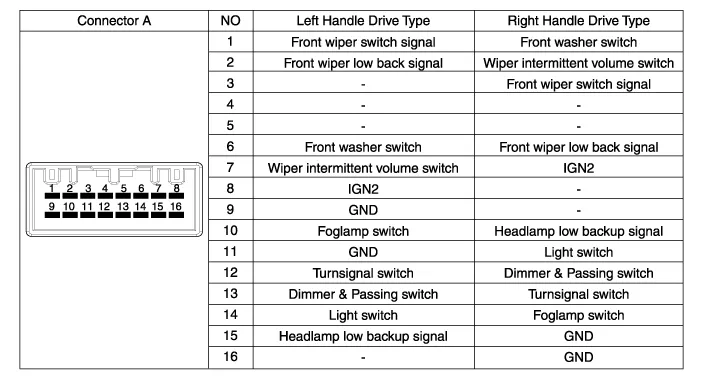

    Specifications Items Specifications Rated voltageDC 12VOperating temperature range-40 to +176°F (-40°C to +80°C)Rated loadWasherWasher : 5A (Motor load)

    Removal1.Disconnect the negative (-) battery terminal.2.Remove the steering wheel.(Refer to Steering System - "Steering Wheel")3.Remove the steering column upper and lower shrouds after loosening the screws.
