Hyundai Ioniq (AE): Low Voltage DC/DC Converter (LDC) / Components and components location

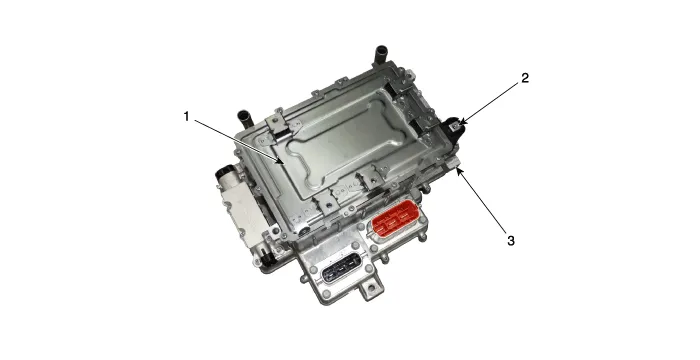

| Component Location |
| 1. Low Voltage DC/DC Converter (LDC) 2. Power Outlet Terminal (DC 12V) | 3. Ground Terminal |
Specification Item Specification Input Voltage (V)200 - 310Output Voltage (V)12.8 - 14.7Rated Power (kW)1.
Schematic Diagram
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Evaporator Core. Repair procedures
Replacement1.Disconnect the negative (-) battery terminal. 2.Remove the heater and blower assembly.(Refer to Heater - "Heater Unit") 3.Remove the evaporator core cover (A) after loosening the mounting screws.4.Pull out the evaporator temperature sensor (A) from the evaporator core.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.Verify that the mode control actuator operates to the vent mode when connected in reverse.
