Hyundai Ioniq (AE): Cylinder Block / Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Mechanical System / Cylinder Block / Components and components location

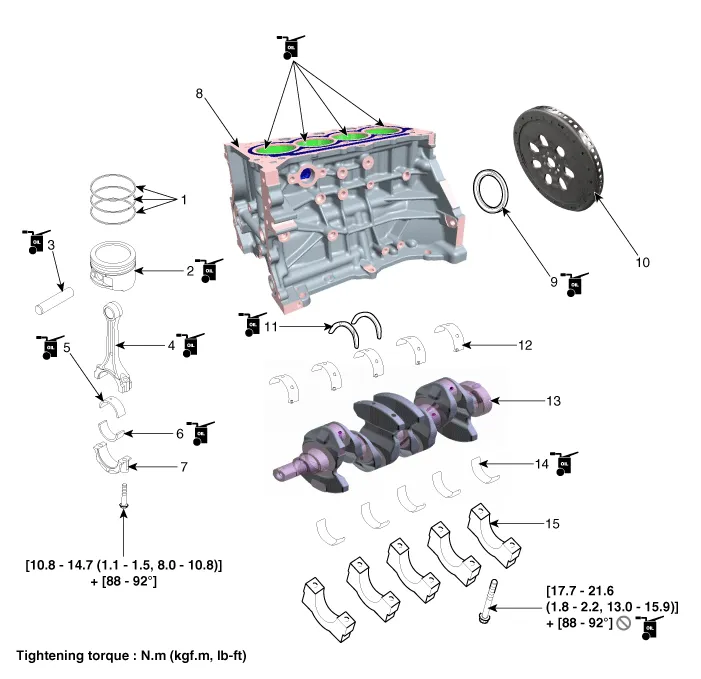

Components

1. Piston ring
2. Piston
3. Piston pin
4. Connecting rod
5. Connecting rod upper bearing
6. Connecting rod lower bearing
7. Connecting rod cap
8. Cylinder block
9. Rear oil seal
10. Flywheel
11. Thrust bearing
12. Main bearing (Upper)
13. Crankshaft
14. Main bearing (Lower)
15. Main bearing cap

    Components1. Flywheel
