Hyundai Ioniq (AE): Input shaft speed sensor 2 / Components and components location

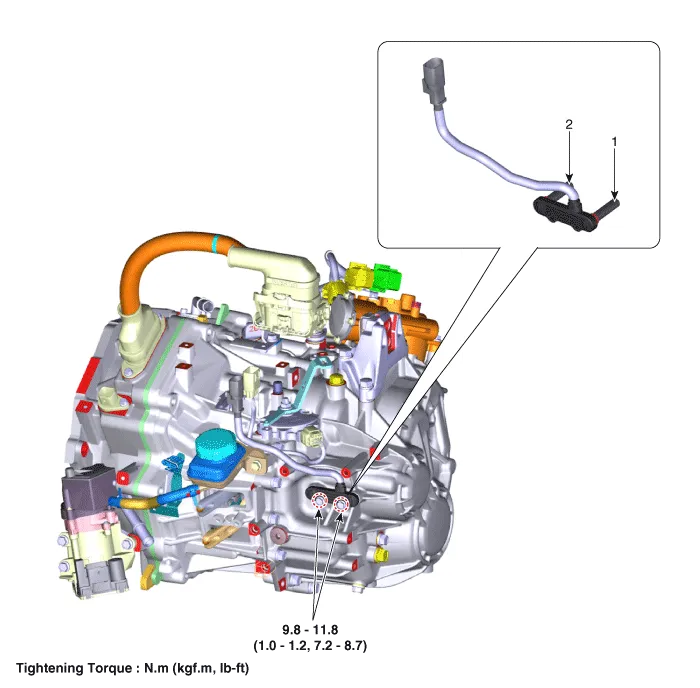

| Components |
| 1. Input shaft speed sensor (Odd) | 2. Input shaft speed sensor (Even) |
Specification Item Specification TypeHall effect sensorOperation condition (°C)°F-40 to 257 °F (-40 to 125 °C )Output signal (mA)High: 11.
