Hyundai Ioniq (AE): Seat Belt Pretensioner. Seat Belt Pretensioner (BPT) / Components and components location

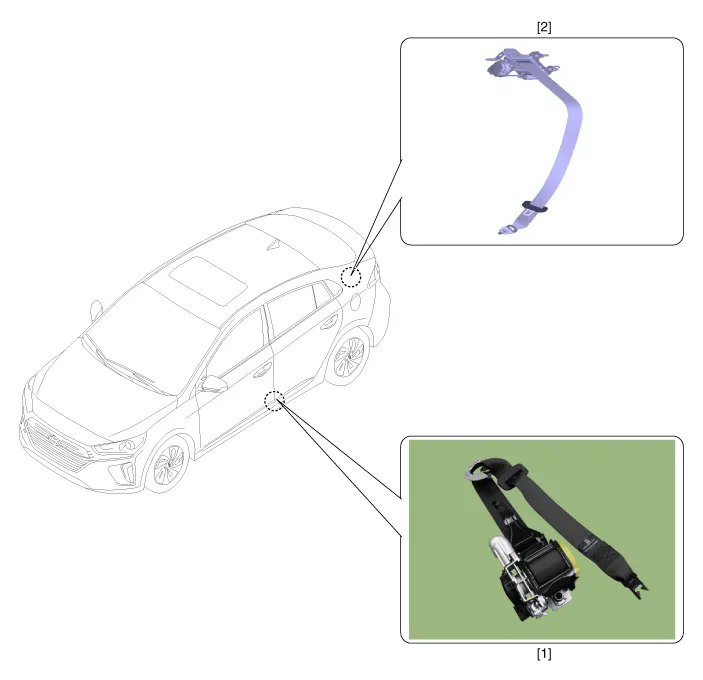

| Components |
| 1. Front Seat Belt Pretensioner | 2. Rear Seat Belt Pretensioner |
DescriptionThe Seat Belt Pretensioners (BPT) are installed inside Center Pillar (LH & RH). When a vehicle crashes with a certain degree of frontal impact, the pretensioner seat belt helps to reduce the severity of injury to the front seat occupants by retracting the seat belt webbing.
Removal [Front Seat Belt Pretensioner]1.Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2.Separate the front seat belt (A) from the emergency fastening device.
