Hyundai Ioniq (AE): High Voltage Battery Cooling System / Cooling Fan. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Hybrid Control System / High Voltage Battery Cooling System / Cooling Fan. Components and components location

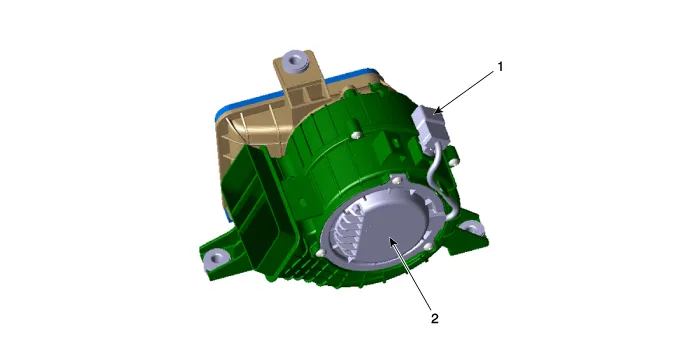

Components

1. Main Connector

2. BLDC Motor

❮Cooling Fan. Specifications

Specification Duty (%) Fan Speed (rpm) 10500201,000301,300401,600501,900602,200702,500802,80090 (Max.

Cooling Fan. Repair procedures❯

Removal • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
