| Removal |
|
| 1. | Shut off the high voltage. (Refer to Hybrid Control System - "High Voltage Shut-off Procedures") |
| 2. | Remove the rear seat cushion. (Refer to Body - "Rear Seat Assembly") |
| 3. | Remove the rear door scuff trim. (Refer to Body - "Door Scuff Trim") |

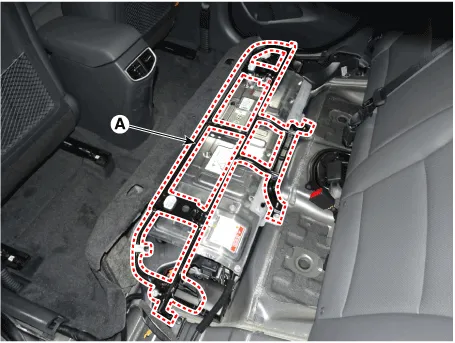

| 4. | Remove the upper frame (A) after loosening the mounting bolts and nuts.
|

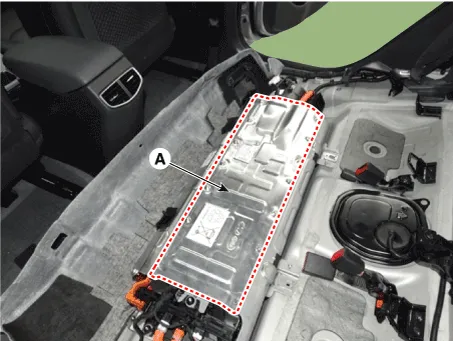

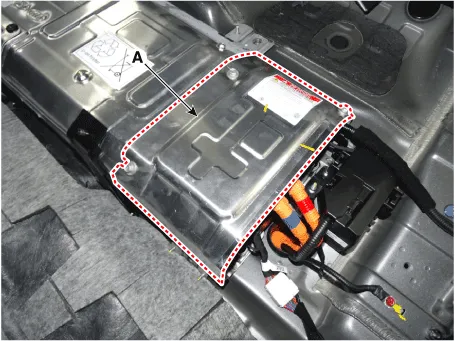

| 5. | Remove the high voltage battery rear cover (A) after loosening the mounting bolts and nuts.
|
| 6. | Remove the high voltage battery front cover (A) after loosening the mounting bolts and nuts.
|
| 7. | Remove the outlet cooling duct. (Refer to Hybrid Control System - "Cooling Duct") |

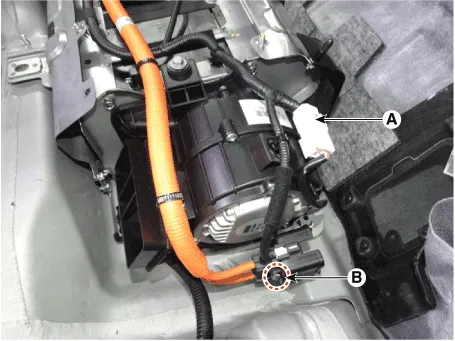

| 8. | Disconnect the cooling fan connector (A). |
| 9. | Remove the safety plug cable after loosening the mounting nuts (B).
|

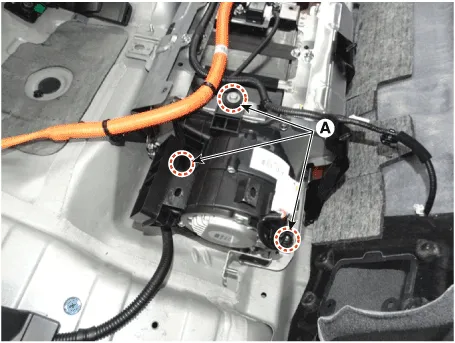

| 10. | Remove the cooling fan after loosening the mounting bolts and nuts (A).
|
| Installation |
|
| 1. | Install the cooling fan in the reverse order of removal.
|
| Inspection |
| 1. | Connect the GDS to the Data Link Connector (DLC). |
| 2. | Connect the oscilloscope probe to the BMS extension connectors.
|
| 3. | Turn the ignition switch ON. |

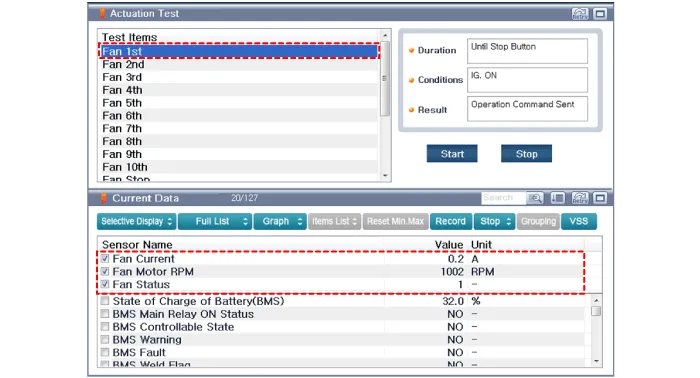

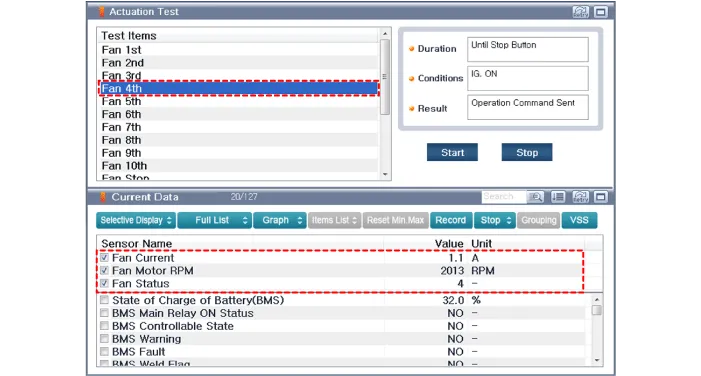

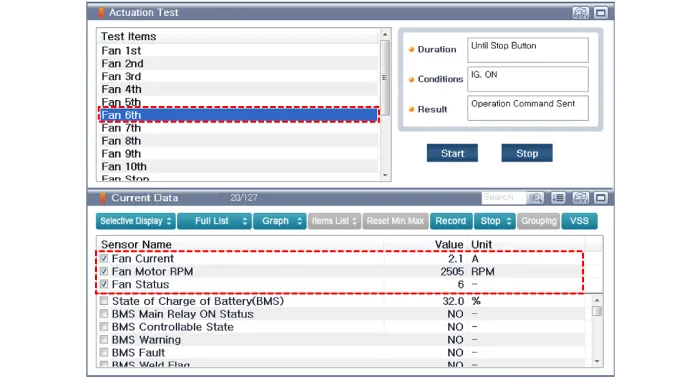

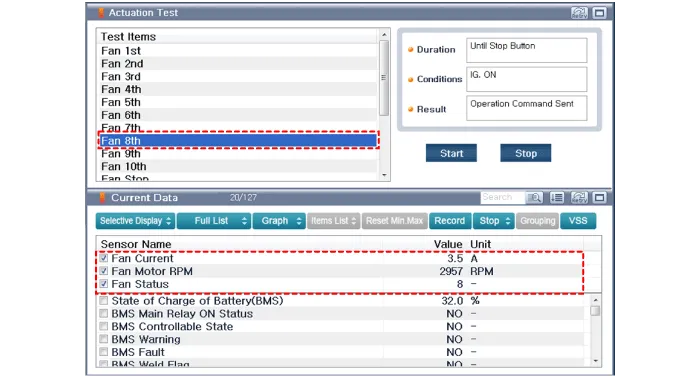

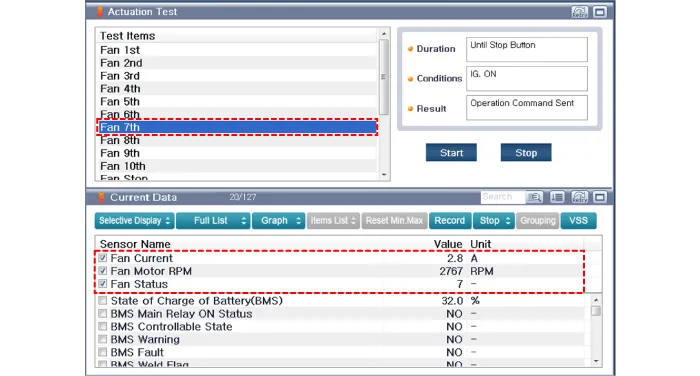

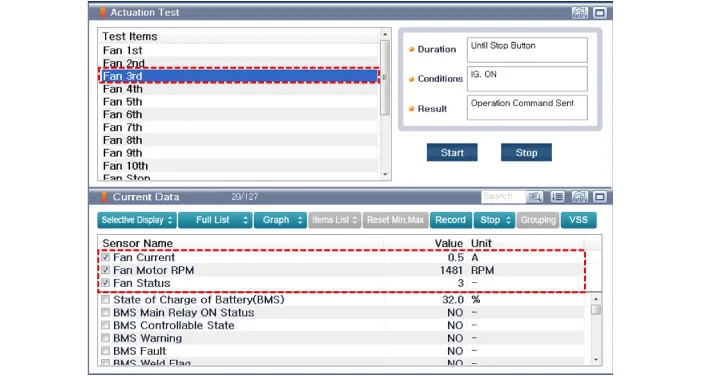

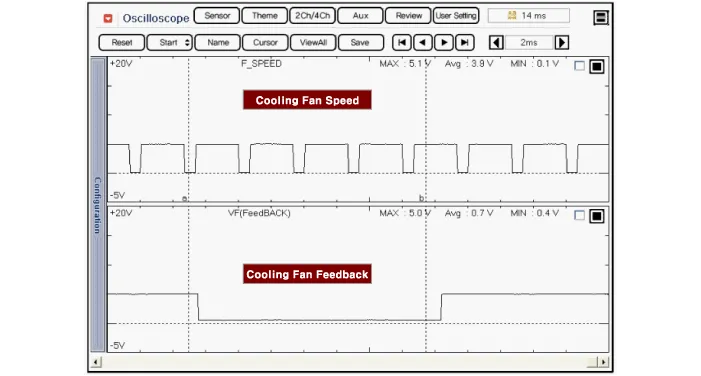

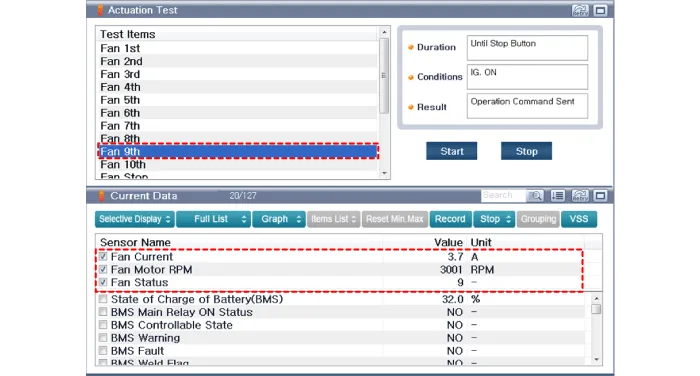

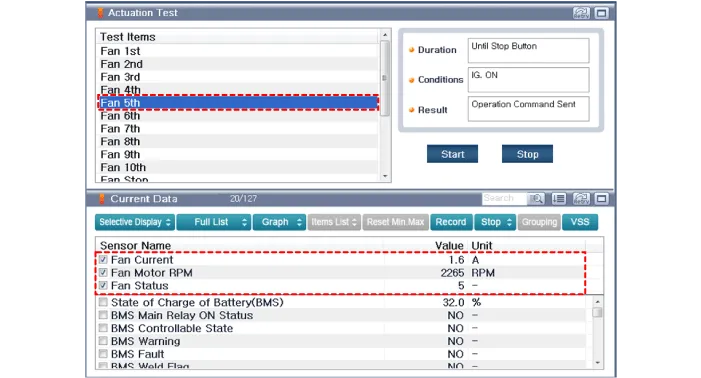

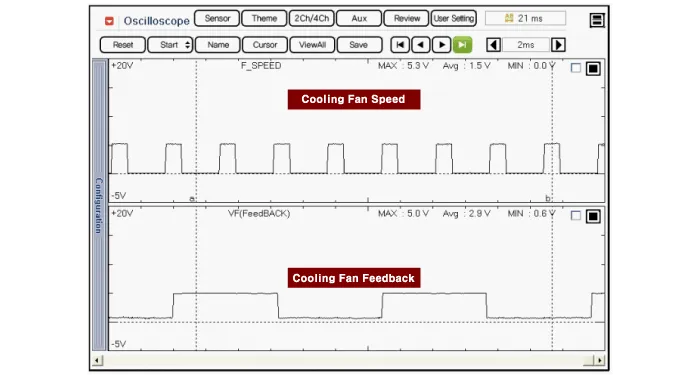

| 4. | Check "Fan Status", "Current" "Waveform" and waveforms in each cooling fan operation mode by using "Actuation Test" function in GDS.

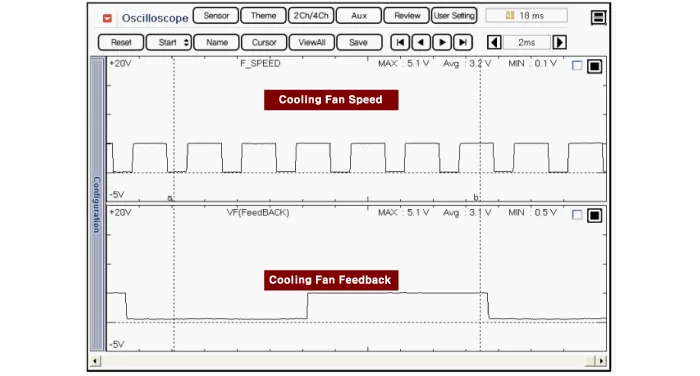

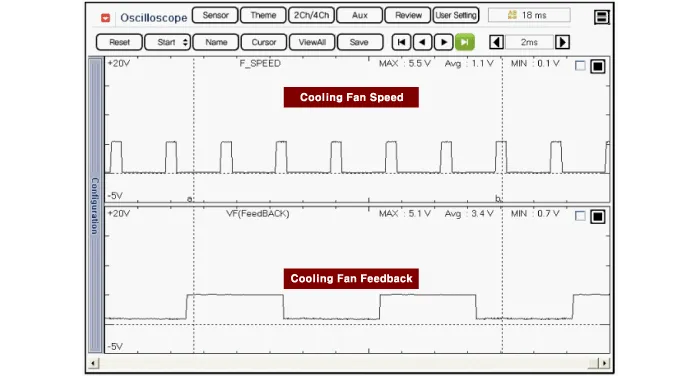

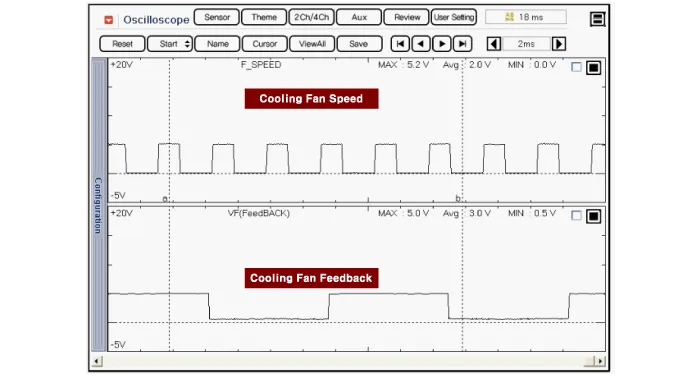

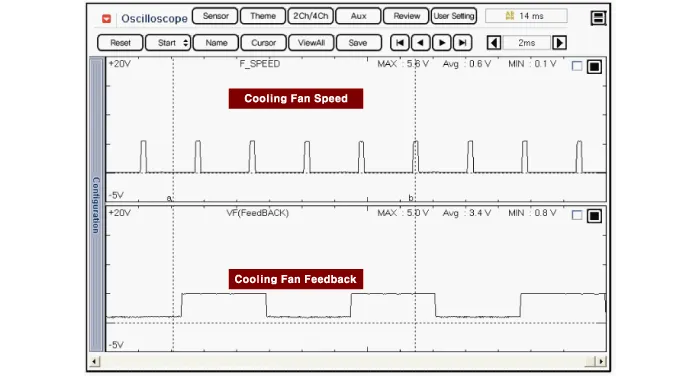

[Cooling Fan at 1st]

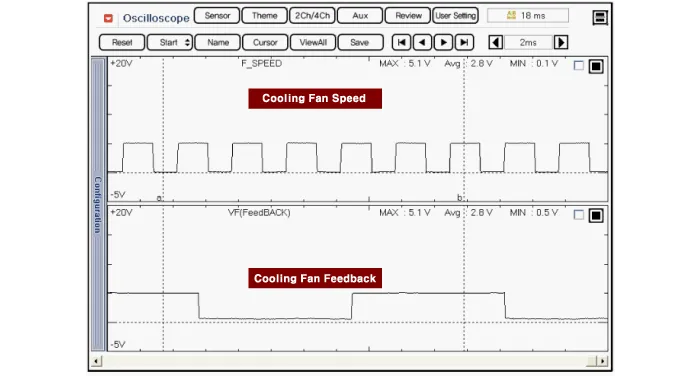

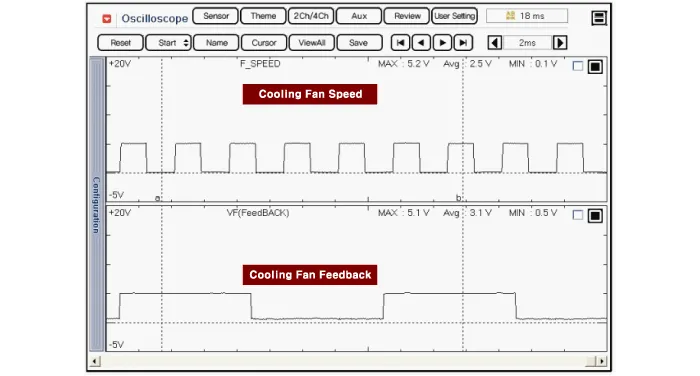

[Cooling Fan at 2st]
[Cooling Fan at 3st]
[Cooling Fan at 4st]
[Cooling Fan at 5st]
[Cooling Fan at 6st]
[Cooling Fan at 7st]
[Cooling Fan at 8st]
[Cooling Fan at 9st]
|
Components1. Main Connector2. BLDC Motor
