Hyundai Ioniq (AE): Timing System / Crankshaft Damper Pulley. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Mechanical System / Timing System / Crankshaft Damper Pulley. Repair procedures

Removal and Installation
1.
Remove the passenger seat RH front tire.
(Refer to Suspension System - "Wheel")
2.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
3.
Remove the drive belt
(Refer to Timing System - "Drive Belt")
4.

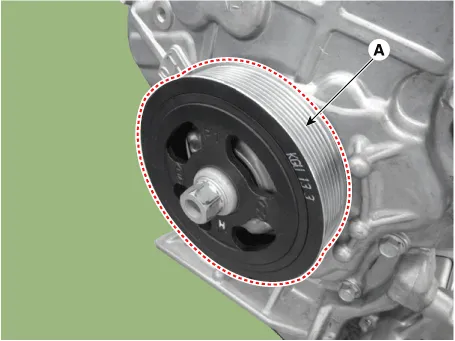

Remove the crankshaft damper pulley (A).
Tightening torque :
65.7 - 71.6 N.m (6.7 - 7.3 kgf.m, 48.5 - 52.8 lb-ft)
+ 39 - 41°


•

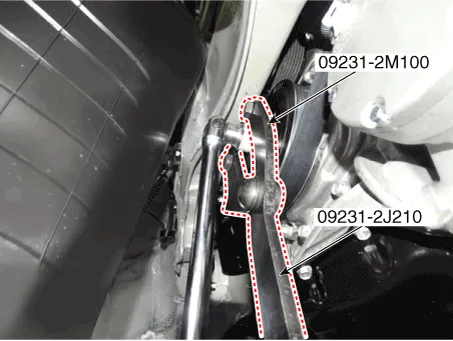

Use the SST (09231-2M100, 09231-2J210) to remove the crankshaft damper pulley bolt.

5.
Install in the reverse order of removal.
Inspection
Check the idler for excessive oil leakage, abnormal rotation or vibration. Replace if necessary.
